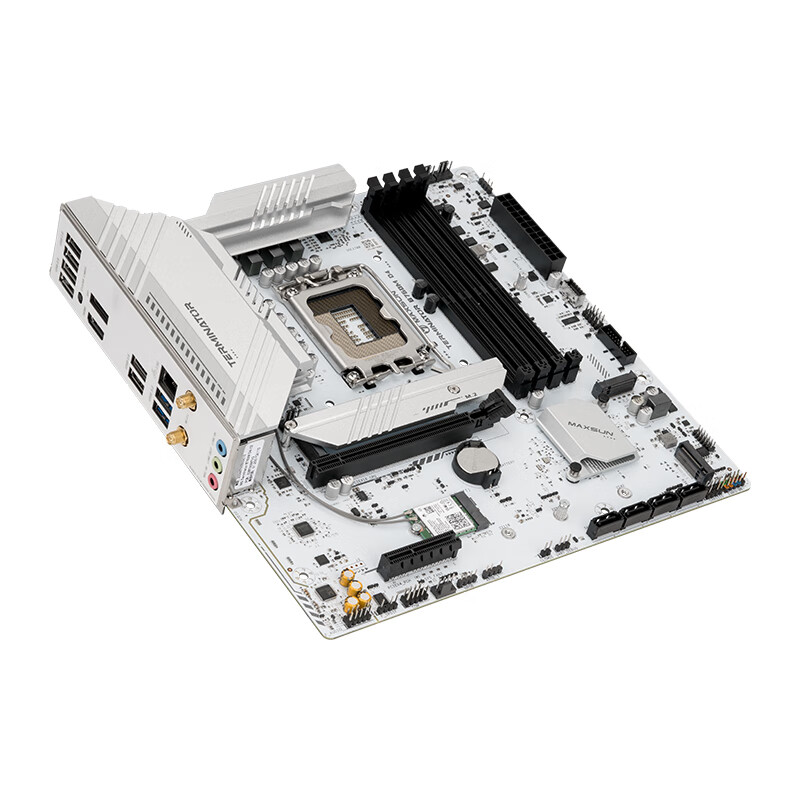

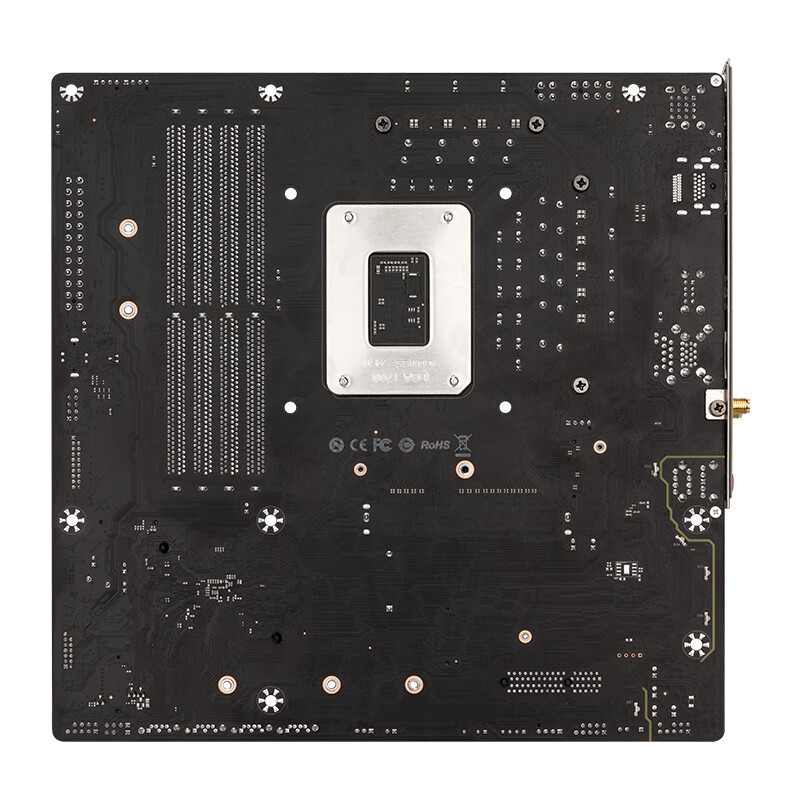

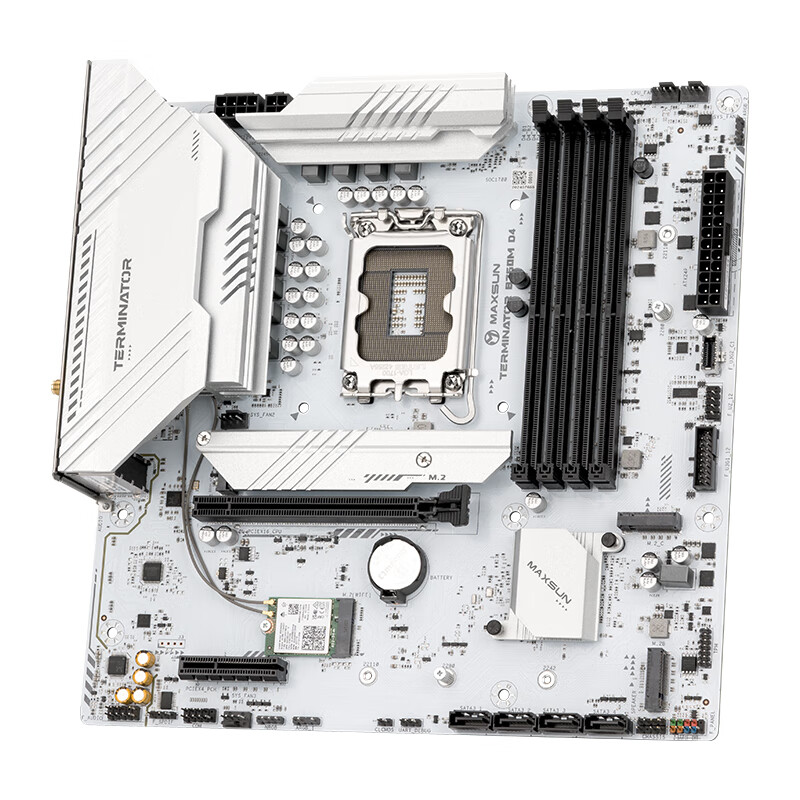

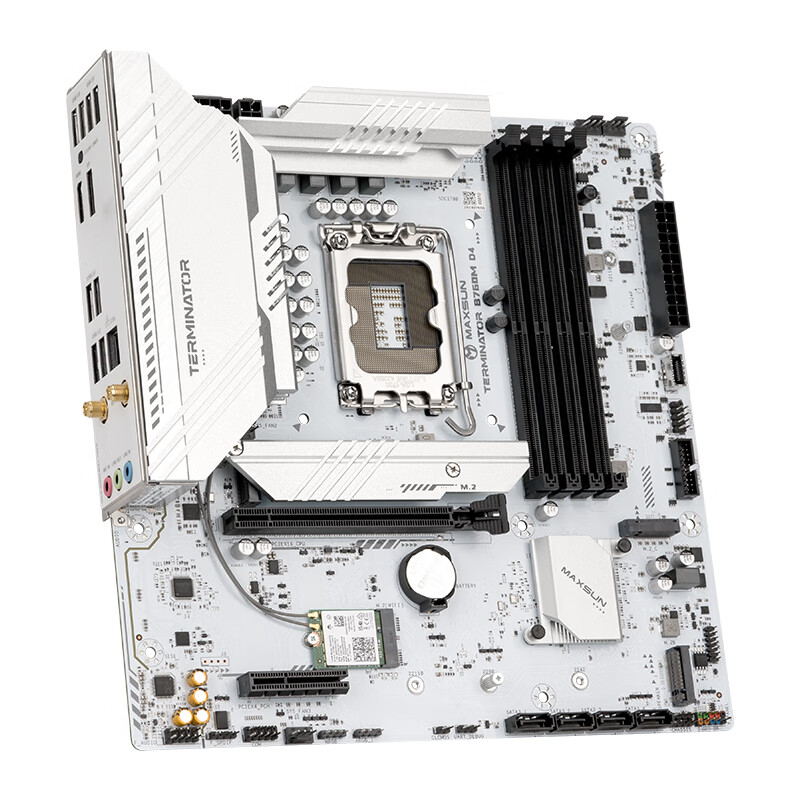

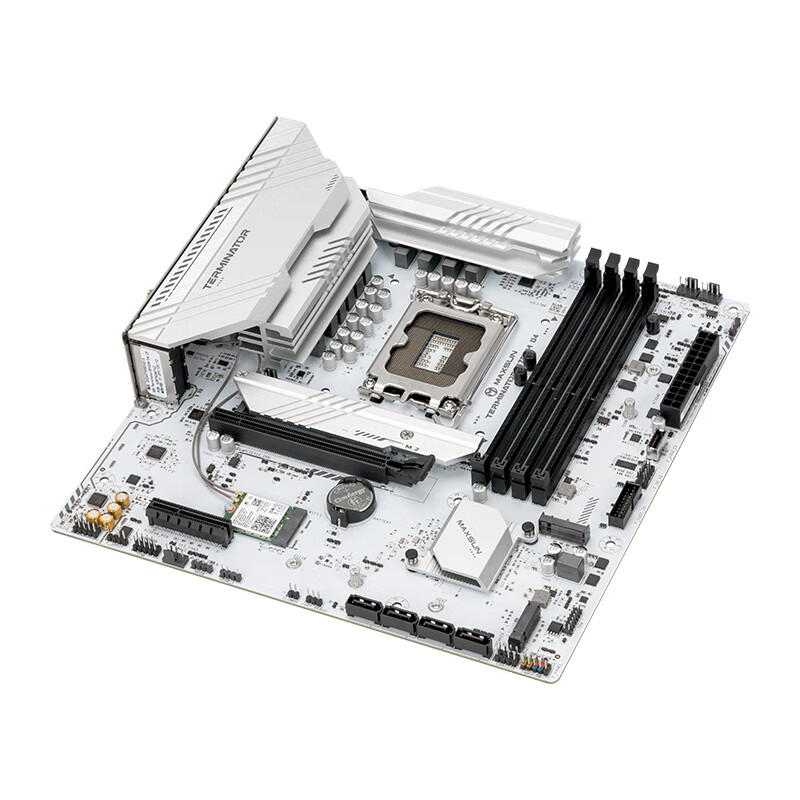

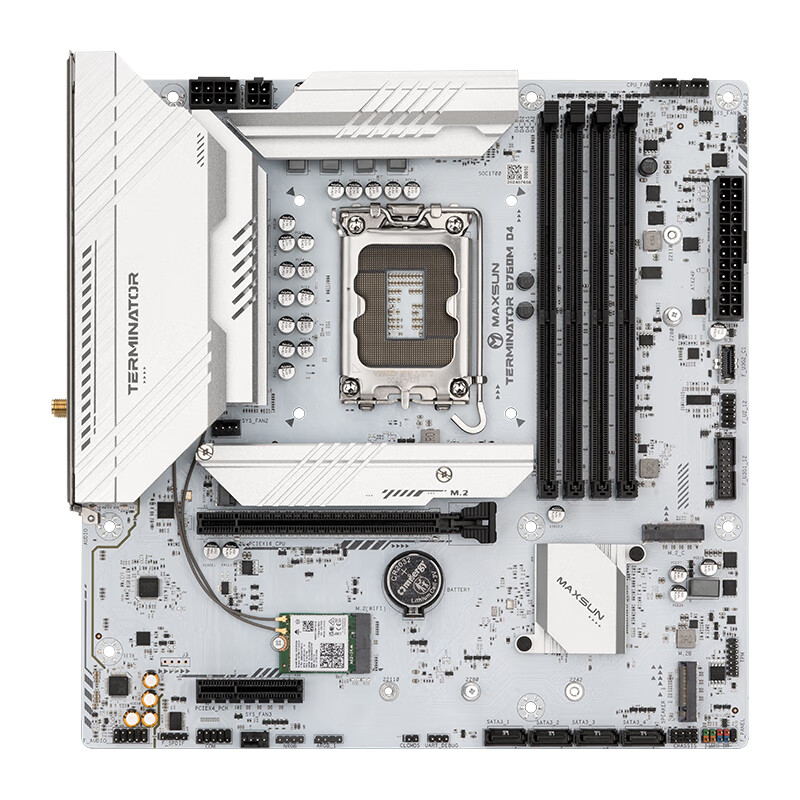

MAXSUN (MAXSUN) MS-Zhongjiezhe B760M D4 ICE WIFI6E Motherboard, DDR4 CPU 12600KF/13490F/14600KF (Intel B760/LGA 1700)

SKU : 100124376329

Availability : In stock
4.7
Weight : 1.29 kg
Length : 29 cm
Height : 6.5 cm

GHS 1,559.15

GHS 1,683.88

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** MAXSUN

**Model:** TERMINATOR B-760M-D4-ICE

**Power Limit (PL):** 220W

**Power Phase:** 8+1+1 Dr.Mos

**Power Design:** 10-phase power delivery with 50A

**Chipset:** SIC654

**Form Factor:** MATX (245*245mm)

**Memory:** DDR4, 4*DIMM, dual-channel, supports XMP2400/2666/293

**Processor Support:** Intel CoreTM LGA1700, 14th & 13th & 12th gen

**Audio:** Realtek ALC897

**LAN:** Realtek 8125

**Wireless Connectivity:** AX211 WiFi6E + Bluetooth 5.3

**Expansion Slots:** 3 full-speed M.2 slots, all PCIe 4.0x4, NVMe protocol supported

**Front Panel Connectivity:** USB3.2 Gen2x2 Type-C, 20Gbps, 2.5G LAN, WiFi6E

**Cooling:** Frost Armor heat dissipation, alloy heat armor covering power MOS and inductors

**Display Outputs:** HDMI 2.0, DP, PCIe x16, PCIe x4

**Storage:** 3 SATA6Gb/s ports, 2 M.2 slots PCIe 4.0x4, supports 2242/2260/2280/22110

**I/O Ports:** 6x USB2.0, 2x USB3.2 Gen2 (10G), 1x USB3.2 Gen2x2 (20G) Type-C

**Audio:** Realtek ALC897, Realtek RTL8125B LAN

**Networking:** RJ45 LAN, Intel AX211 WiFi6E + Bluetooth 5.3

**Power Connectors:** 24-pin ATX, 8+4-pin ATX12V

**RGB Connectors:** 2x 5V ARGB, 1x 12V RGB

**Other Features:** COM_A header, Clear CMOS button, system fan headers, CPU fan header, Debug header

**Specifications:**

**Form Factor:** M-ATX (245*245mm)

**CPU Socket:** Intel LGA1700, 12th/13th/14th gen processors, TDP: 220W

**Chipset:** Intel B760

**Memory Slots:** 4 DIMM DDR4, up to 256GB, dual-channel, supports 2400/2666/2933/3200/OCMHz

**Display Outputs:** HDMI 2.0 (4096x2160@60Hz), DP (4096x2160@60Hz)

**Expansion Slots:** PCIe x16, PCIe x4

**Audio:** Realtek ALC897

**Networking:** Realtek RTL8125B LAN, Intel AX211 WiFi6E + Bluetooth 5.3

**Storage:** 1x M.2 PCIe 4.0X4/X2 slot (2242/2260/2280), 2x M.2 PCIe 4.0X4/X2 slots (2242/2260/2280/22110), 3x SATA6Gb/s ports

**USB Ports:** 6x USB2.0, 2x USB3.2 Gen2 (10G), 1x USB3.2 Gen2x2 (20G) Type-C

**Internal Headers:** 2x USB2.0, 2x USB3.2 Gen1 (5G), 1x Type-C USB3.2 Gen2x2 (20G)

**Power Connectors:** 24-pin ATX, 8+4-pin ATX12V

**Other Features:** COM_A header, Clear CMOS button, system fan headers, CPU fan header, Debug header
