Netcore S10P, 10-Port 100Mbps 8-Port POE Switch, Enterprise Security Monitoring Camera, Network Cable Powered Switch, Engineering Network Splitter, Metal Body

Netcore S10P, 10-Port 100Mbps 8-Port POE Switch, Enterprise Security Monitoring Camera, Network Cable Powered Switch, Engineering Network Splitter, Metal Body

SKU : 100017594344

Availability : In stock

4.7

Weight : 0.95 kg

Length : 21.5 cm

Height : 5 cm

GHS 218.20

GHS 235.66

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

GHS 218.20

GHS 235.66

Order now and get it by 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Product Description

**Product Specifications:**

Brand: netcore

Model: Intelligent PoE Switch

Application: Security monitoring projects

Features: AI intelligent watchdog, steel shell for heat dissipation and stable transmission

Power Supply: 130W total, 30W per port

Surge Protection: 4KV lightning protection

Body Material: Metal casing for durability

Intelligent Traffic Control

Recommended for engineering applications

Supports wireless bridge systems, PoE monitoring systems, building intercom systems, and wireless networking systems

Wide compatibility with various network devices such as computers, printers, and network cameras

Plug and Play functionality with AutoMDI/MDI-X support

IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control

Industrial-grade manufacturing process with strong heat dissipation

Suitable for scenarios like school dormitories, urban villages, homes, and small businesses

Application Scenarios: Security monitoring networks, telephone conference systems, computer and printer networks, office and home environments

Package Solutions:

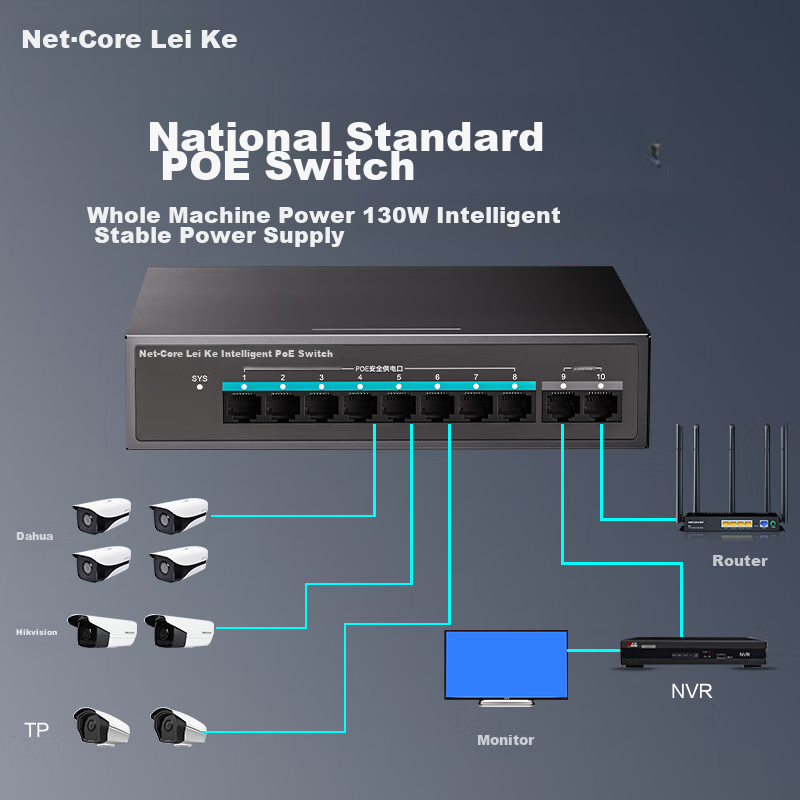

1. Home/Villa Networking Solution: Includes PoE switch, router, NVR, PoE cameras x8, and monitor

2. Enterprise/Supermarket Networking Solution: Includes PoE switch, PoE cameras x8, NVR, and monitor

Product Parameters:

- Ports: 8 x 100Mbps PoE ports + 2 x 100Mbps uplink ports

- Backplane Bandwidth: 2G

- MAC Address Table: 2K

- Operating Temperature: 0°C to 40°C

- Storage Temperature: -40°C to 70°C

- Operating Humidity: 10% to 90% RH non-condensing

- Storage Humidity: 5% to 90% RH non-condensing

- Power Supply: AC input 110V-220V 50/60Hz

- Surge Protection: 4KV common mode differential mode

- Data Transfer Rate: 10/100Mbps full-duplex/half-duplex

- Product Dimensions: 196.3mm x 147.69mm x 47.6mm

- Ethernet Protocols and Standards: IEEE802.3 Ethernet MAC, IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3× flow control, IEEE802.3af/at PoE

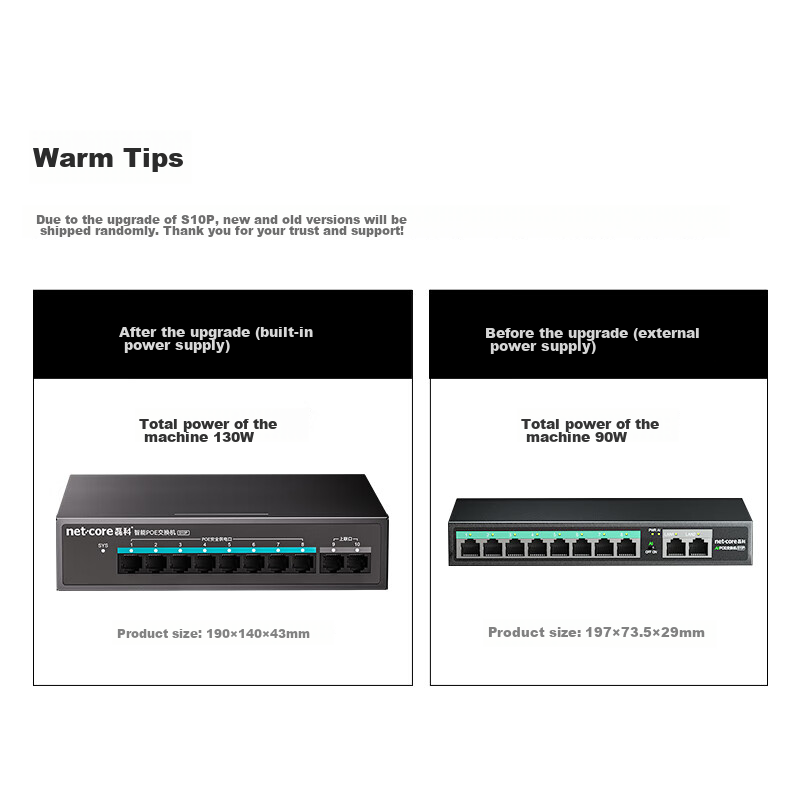

Warm Reminder: Due to S10P upgrades, both old and new versions are randomly shipped

FAQ:

- Q: Which cameras can be connected to this PoE switch?

A: Cameras compliant with IEEE802.3AF/AT standards are supported. For non-PoE cameras, a standard PoE splitter can be used.

- Q: Cameras work fine during the day but have no image at night, and the monitor goes black. What could be the issue?

A: This is a typical case of insufficient camera power supply. Ensure you are using high-quality cables and test the cable resistance with a multimeter to determine its suitability for the distance.
