Netcore S8P 8-Port 100Mbps 6-Port Powered POE Switch, Surveillance Camera Splitter, Unmanaged Network Switch, AI Intelligent Enterprise-Grade Splitter

Netcore S8P 8-Port 100Mbps 6-Port Powered POE Switch, Surveillance Camera Splitter, Unmanaged Network Switch, AI Intelligent Enterprise-Grade Splitter

SKU : 100017594322

Availability : In stock

4.7

Weight : 0.62 kg

Length : 19 cm

Height : 8.5 cm

GHS 178.22

GHS 192.48

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

GHS 178.22

GHS 192.48

Order now and get it by 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Product Description

**Product Specifications:**

Brand: netcore

Model: LAN2

Type: POE Switch for Security Monitoring Projects

Distance Transmission: Up to 250 meters

Power Output: 30W peak per port

Transmission Technology: AI Smart Guard Dog

Lightning Protection: 4KV

Housing Material: Metal

Intelligent Traffic Control

Recommended for Engineering Applications

Wireless Bridge System Compatibility

POE Monitoring System Integration

Building Intercom System Support

Wireless Networking System Compatibility

**Features:**

Standard POE ports

Plug and Play, no configuration needed

Auto MDI/MDI-X support on all ports

MAC address auto-learning and updating

IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control

Easy to use for beginners

Sturdy metal casing for durability

Efficient heat dissipation for stable operation

**Applications:**

Suitable for various networking environments including schools, dormitories, residential areas, small businesses, etc.

Ideal for security monitoring, IP phone systems, video conferencing, and office setups

**Scenario Solutions:**

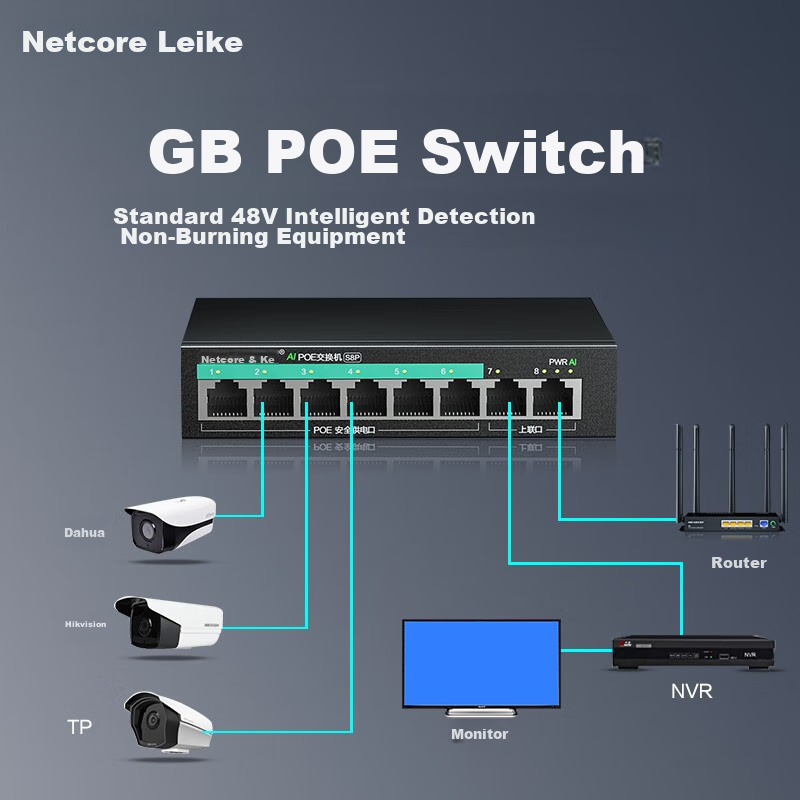

1. Home/Villa Networking Solution:

- Includes POE Switch, Router, NVR, POE Cameras, and Monitor

2. Enterprise/Supermarket Networking Solution:

- Features POE Switch, POE Cameras, NVR, and Monitor

**Product Parameters:**

Ports: 6 POE power ports + 2 uplink ports

Switching Capacity: 1.6G

MAC Address Table: 2K

Operating Temperature: 0°C to 40°C

Storage Temperature: -40°C to 70°C

Operating Humidity: 10% to 90% RH non-condensing

Storage Humidity: 5% to 90% RH non-condensing

Input Power: 52V/65W external power supply

Lightning Protection: Common mode differential mode

Ethernet Speed: 10/100Mbps half/full duplex, 1000Mbps full duplex

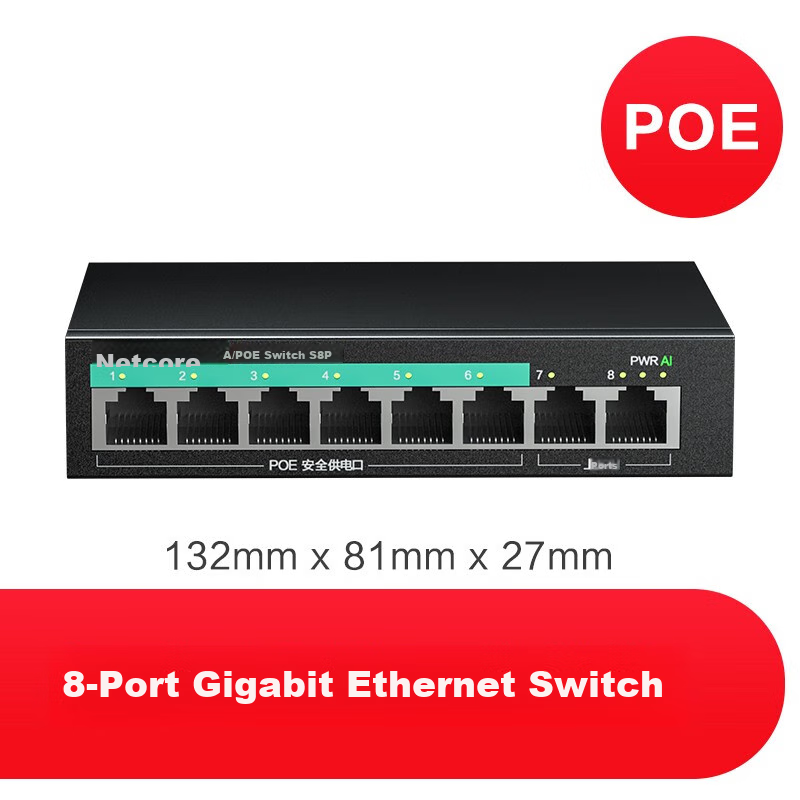

Product Dimensions: 132mm x 81mm x 27mm (L x W x H)

**FAQ:**

Q: Which cameras are compatible with this POE switch?

A: Cameras compliant with IEEE802.3AF/AT standards are supported.

Q: My camera works during the day but not at night, and the monitor goes black. What could be the issue?

A: This could be due to insufficient power supply to the camera. Ensure you are using high-quality cables and test the resistance.

Q: I'm using Cat5e cables, but the signal cuts off after 30 meters. What should I do?

A: Check the cable connections and use a cable tester to verify proper networking. Ensure the crystal head is correctly crimped using T568B wiring.

Q: Can this switch support 4-core cable power supply without affecting camera transmission?

A: The switch supports 1236 line sequence power supply, compatible with 4-core power supply. Camera network interfaces are 100Mbps, requiring only 1236 cores for transmission.

Q: When should I enable the Extend function?

A: The Extend feature is for distances exceeding 100 meters or in cases of signal interference or weak strength causing image disruptions.
