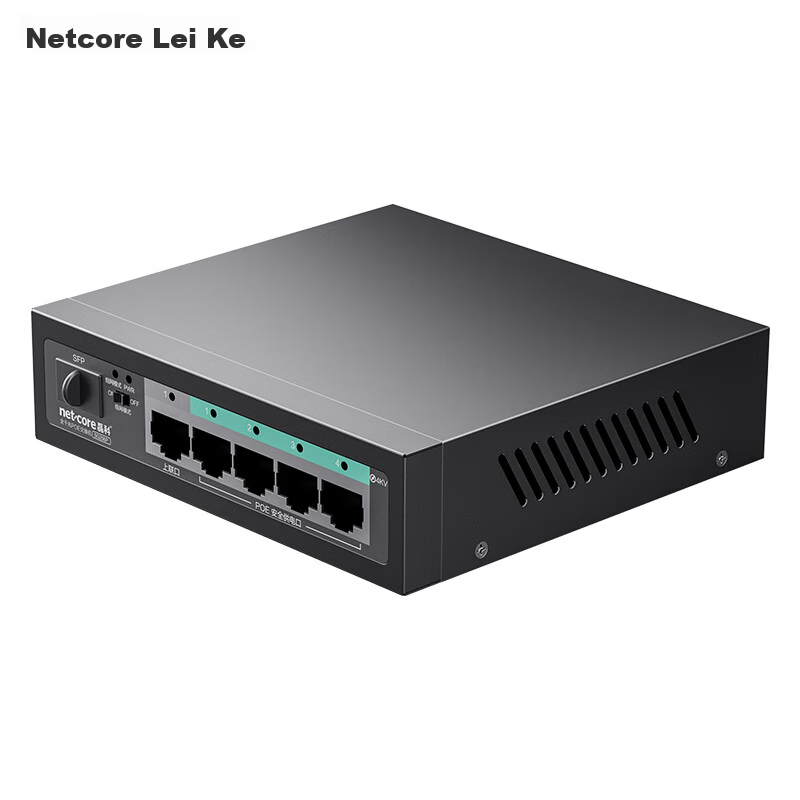

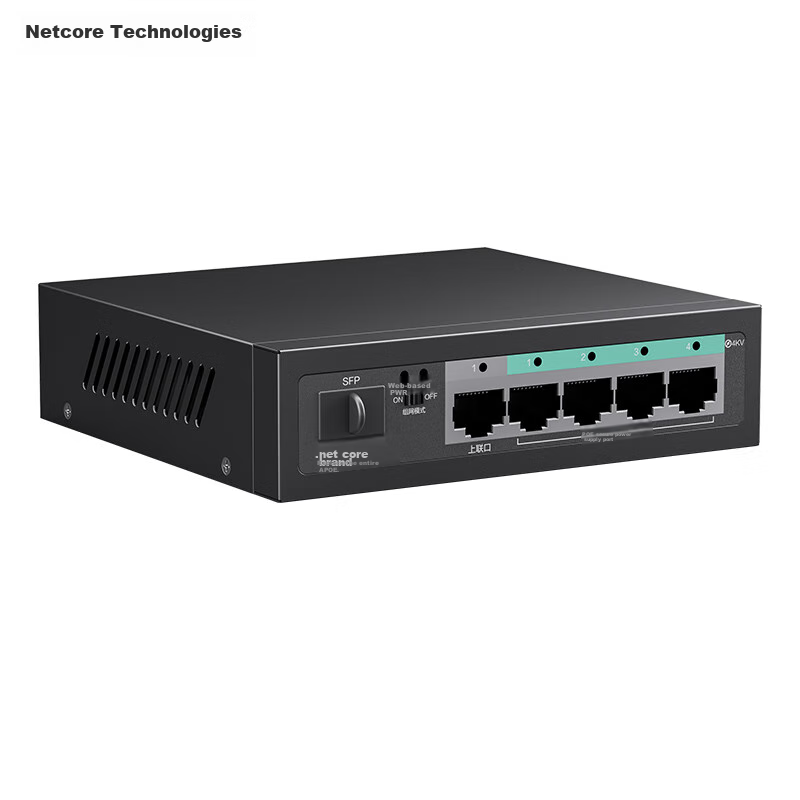

Netcore SG206P, 4-Port Gigabit POE Switch + 1 Gigabit Uplink Port + 1 SFP Optical Port, Engineering-Grade Enterprise-Level Monitoring Network Splitter, Unmanaged, Metal Body

Netcore SG206P, 4-Port Gigabit POE Switch + 1 Gigabit Uplink Port + 1 SFP Optical Port, Engineering-Grade Enterprise-Level Monitoring Network Splitter, Unmanaged, Metal Body

SKU : 100040143482

Availability : In stock

4.7

Weight : 0.59 kg

Length : 20.8 cm

Height : 6.6 cm

GHS 298.16

GHS 322.01

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

GHS 298.16

GHS 322.01

Order now and get it by 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Product Description

**Product Specifications:**

**Brand:** netcore

**Model:** SG206P

**Ports:** 6 x 10/100/1000M ports (4 POE, 1 UPLINK, 1 SFP)

**Network Mode:** SFP, ONOFP

**Network Topology:** Full Gigabit interface, 1 Gigabit uplink port, Gigabit optical port cascading

**Bandwidth:** Unlimited, maximizing port utilization, long-distance transmission

**Lightning Protection:** 4KV professional lightning protection

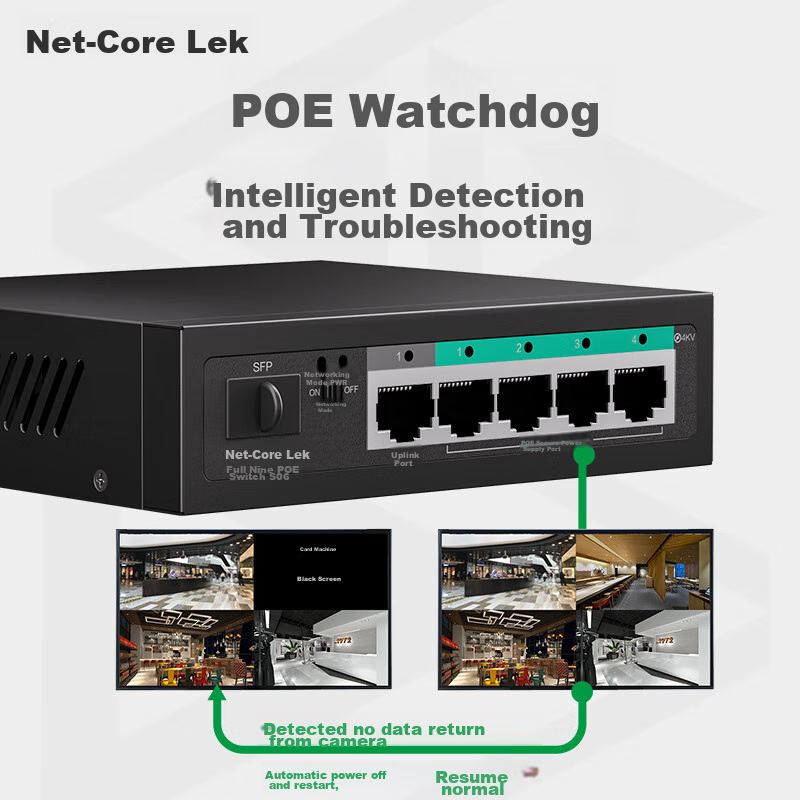

**POE Features:** POE watchdog, IEEE802.3af/at standard, independent lightning protection tube, intelligent fault detection, maximum power per port 30W

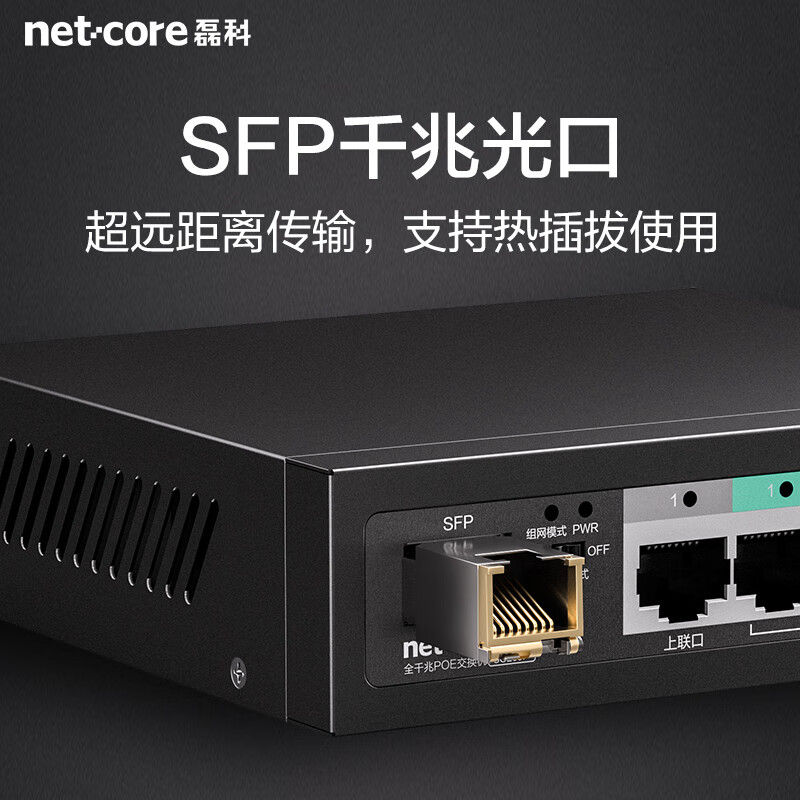

**SFP Features:** Gigabit optical port, long-distance transmission, hot-swappable, PWR, OFF, net network mode

**Power Supply:** 52W total power consumption, maximum power per port 30W, standard POE safe power supply

**Support:** IEEE802.3af/at power supply standard, stable operation with full Gigabit AP, 500W pixel HD camera load

**Plug and Play:** No configuration required, supports store-and-forward switching mechanism, full duplex/half duplex flow control, automatic power supply to adaptive devices

**Security:** Multiple protections against overcurrent, overvoltage, short circuit, storm suppression, and inter-device access

**Product Parameters:**

- Ports: 4 x 10/100/1000M POE ports, 1 x 10/100/1000M uplink port, 1 x SFP expansion slot (optical port)

- POE Standard: IEEE802.3AF/AT protocol standard, peak power per port 30W, peak power for the whole machine 52W

- Protection: Overcurrent, overvoltage, short circuit protection, storm suppression, high-power PD soft start, sequential startup, certified non-standard PD power supply

- Switching Capacity: 12Gbps

- Input Power: AC input 100-240V, comes with a 52W power supply

- Supported Standards and Protocols: IEEE802.3af/at series protocols, IEEE802.3 Ethernet Media Access Control Protocol, IEEE802.3i 10BASE-T Ethernet, IEEE802.3u 100BAST-TX Fast Ethernet, IEEE802.3ab 1000BASE-T Gigabit Ethernet, IEEE802.3X flow control

- Operating Environment: Operating temperature 0°C to 40°C, storage temperature -40°C to 70°C, operating humidity 10% to 90% RH non-condensing, storage humidity 5% to 90% RH non-condensing

- Default System Mode: Normal switching mode/VLAN isolation

- Network Media: 10BaSe-T: 2 pairs of Category 3 (CAT3) or above UTP/STP (≤100m), 100BaSe-TX: 2 pairs of Category 5 (CAT5) or above UTP/STP (≤100m), 1000BaSe-TX: 2 pairs of Category 5e (CAT5e) or above UTP/STP (≤250m)

- Dimensions: 125mm x 115mm x 34mm (L x W x H)
