OFNPFTTH (OFNPFTTH) Category 7 Tool-Free Crystal Head, Engineering-Grade CAT7 Shielded Crystal Head, 8P8C Tool-Free RJ45 Computer Network Cable Connector, Network Connector WJ-15611

SKU : 100011606524

Availability : In stock
4.7
Weight : 0.02 kg
Length : 12.5 cm
Height : 1.5 cm

GHS 81.15

GHS 87.64

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** OFNPFTTH

**Model:** WJ-15611

**Product Name:** Category 7 Shielded Crystal Head

**Material:** Zinc Alloy

**Network Standard:** 10Gbps

**Copper Thickness:** 50U

**Aperture Diameter:** 2mm

**Interface Type:** RJ45

**Features:**

Category 7 shielded crystal head with 10Gbps network standard

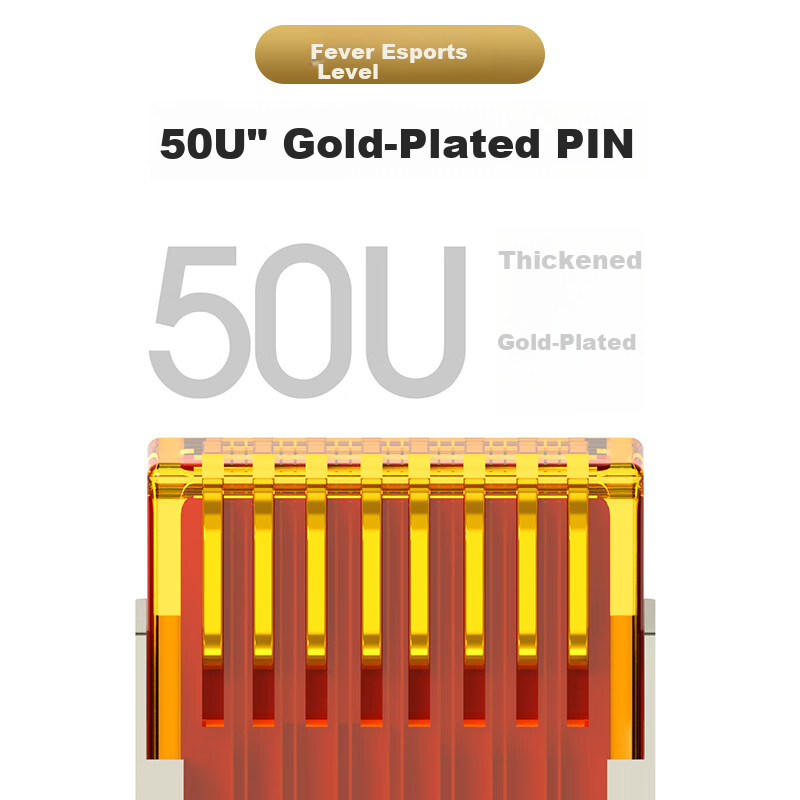

50U thick copper for enhanced durability

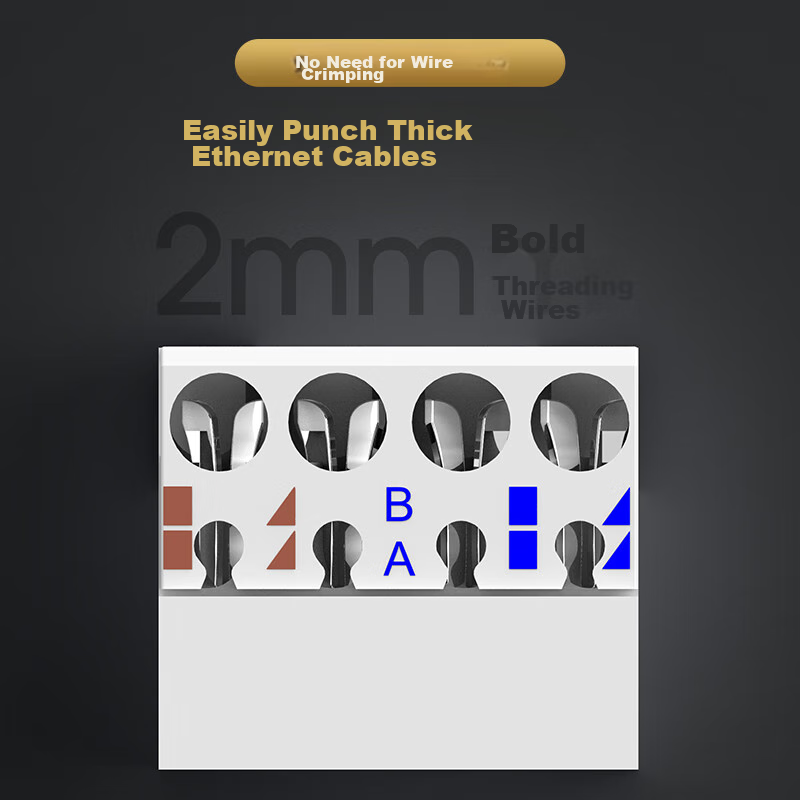

2mm aperture for easy cable threading

Zinc alloy shielding for interference prevention

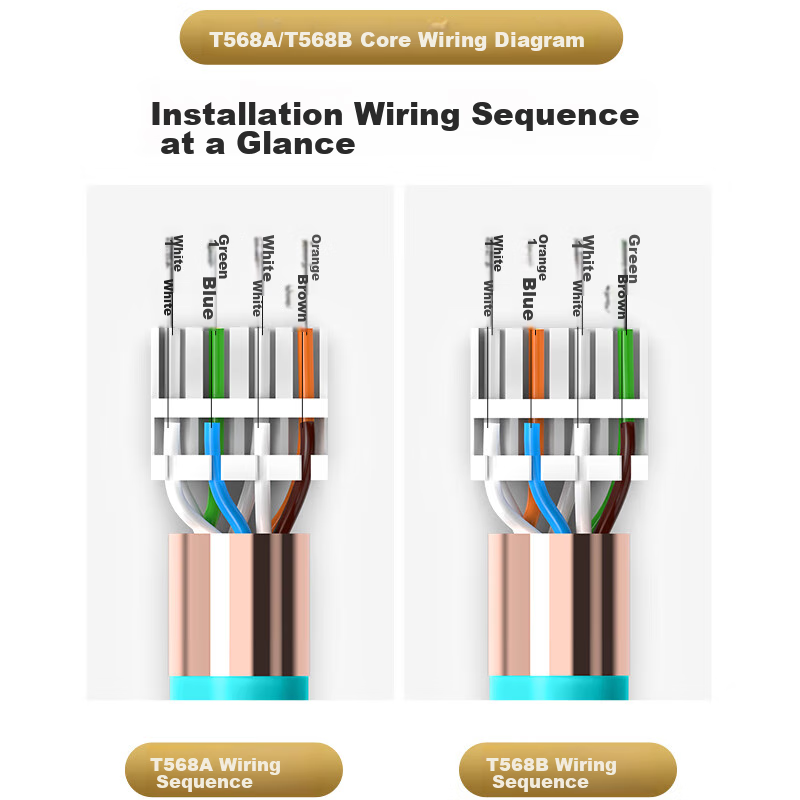

T568A/T568B wire core diagrams for easy installation

Suitable for various network devices such as desktop computers, laptops, network TVs, switches, modems, and set-top boxes

**Installation Steps:**

1. Thread the metal sheath through the network cable

2. Use a wire stripper to remove the outer sheath of the cable

3. Thread the wire sequence through the wire arranger, cut off excess wire ends

4. Wrap the end with the provided copper foil

5. Attach the copper foil to the end and insert it into the crystal head

6. Close and tighten the screw sheath to complete the installation

**Dimensions (Manual Measurements, may have slight errors):**

Length: 58mm

Width: 14mm

Height: 13mm

**Note:** This cable is designed for 10Gbps broadband and is tested to meet industry standards for high-speed data transmission.
