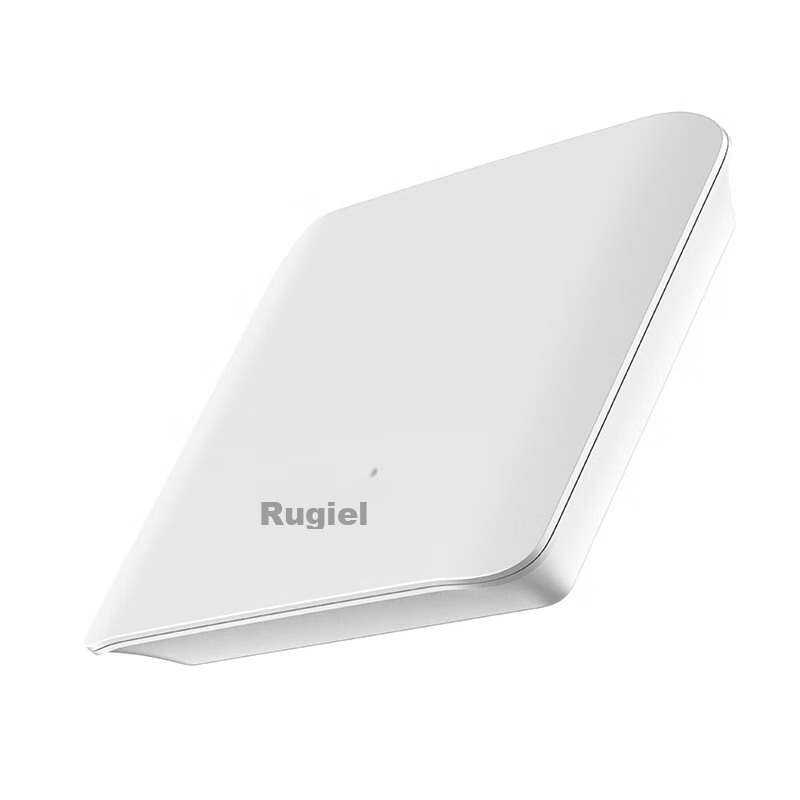

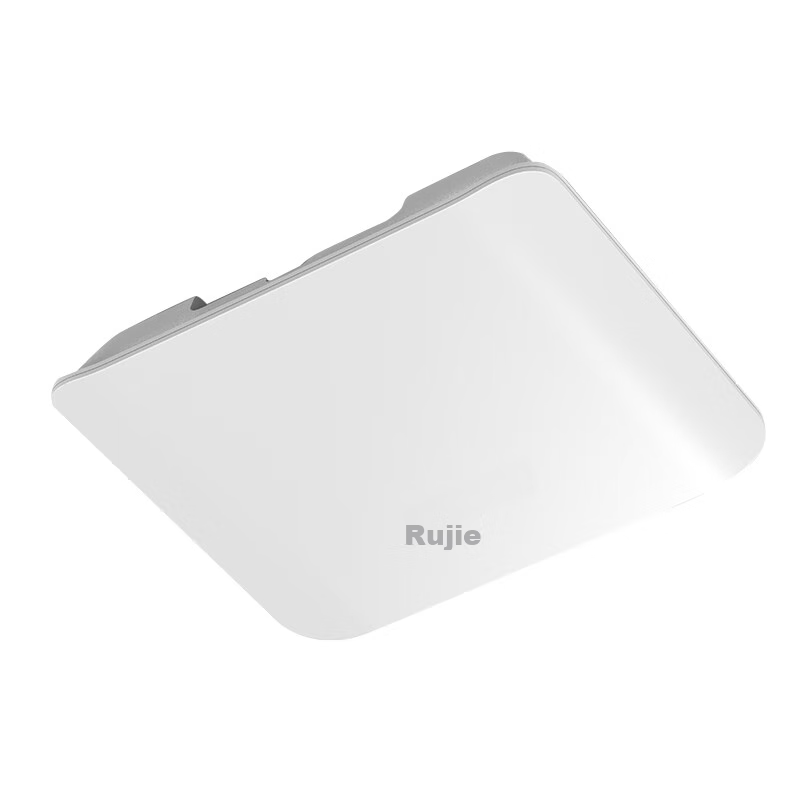

**Product Specifications:**
**Brand:** Ruijie
**Recommended Use:** Open spaces
**Product Models:**
- RG-EAP101
- RG-EAP102(F)
- RG-EAP102(E)
- RG-EAP162(G)
- RG-EAP162(E)
- RG-EAP201
- RG-EAP212(F)
- RG-EAP202
- RG-EAP212(G)V2
- RG-EAP262(G)
- RG-EAP262(E)
**Access Ports:** 10/100Mbps or Gigabit Ethernet ports
**Wireless Rate:** 300Mbps to 3000Mbps
**Type:** Indoor Access Points
**Access Terminals:** 10 to 80
**Coverage Radius:** 10 to 40 meters
**Features:**
- Supports IPTV
- Supports Wi-Fi 6
- MU-MIMO technology
- Dual-band wireless
**Color:** Elegant White
**RF Design:** 2.4GHz and 5GHz dual-band, dual-stream
**Transmission Protocol:** Wave1/Wave2
**Spatial Streams:** 2x2 MIMO for both 2.4GHz and 5GHz
**Transmission Rate:** Up to 867Mbps for 5GHz
**Maximum Throughput:** 1167Mbps
**Power Consumption:** Peak <12.95W, Average <7.5W

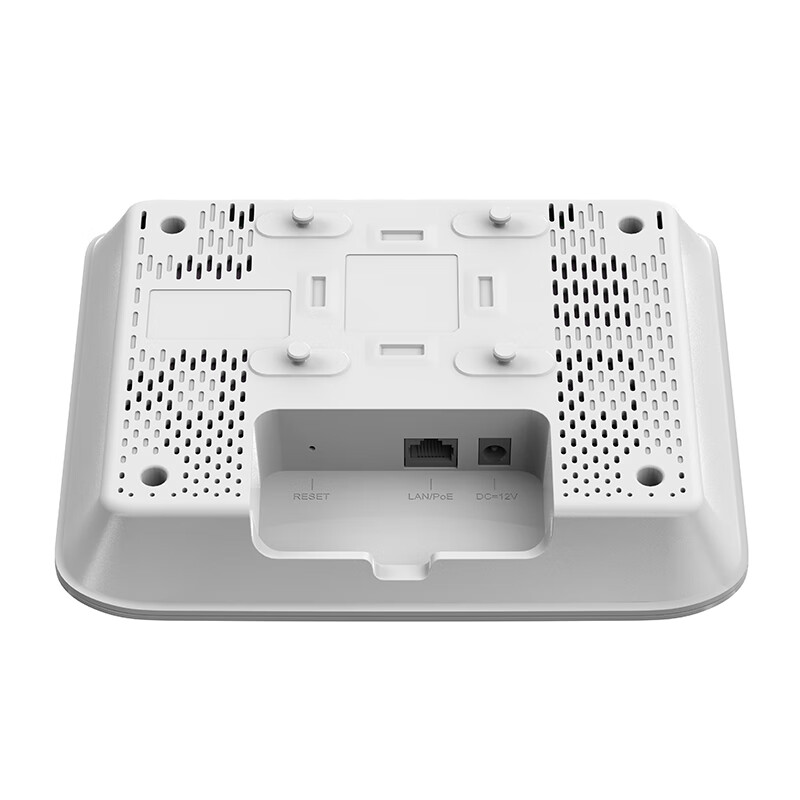

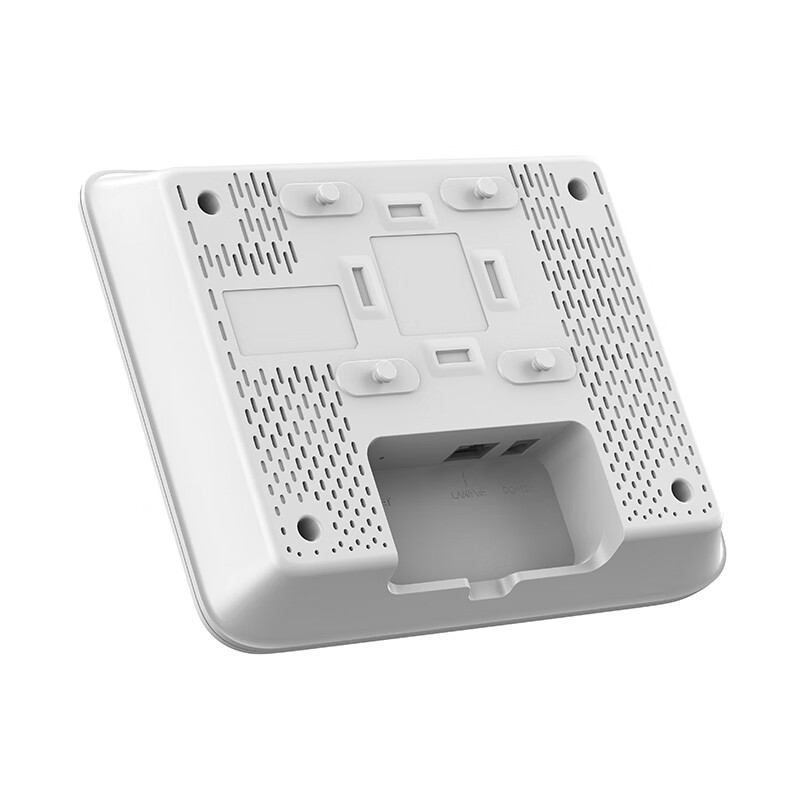

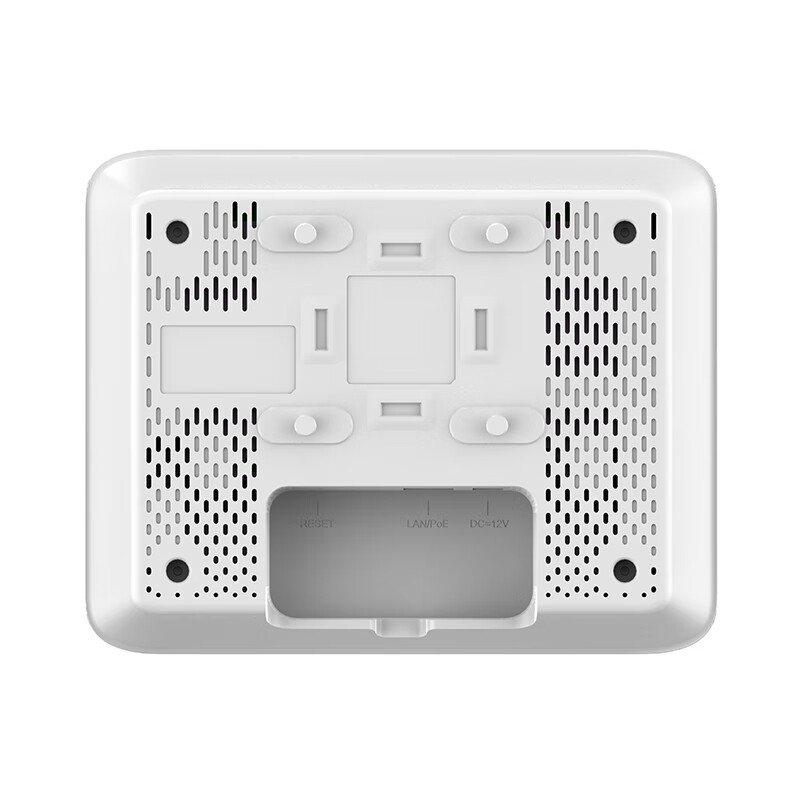

**Installation:** Wall-mounted or ceiling-mounted

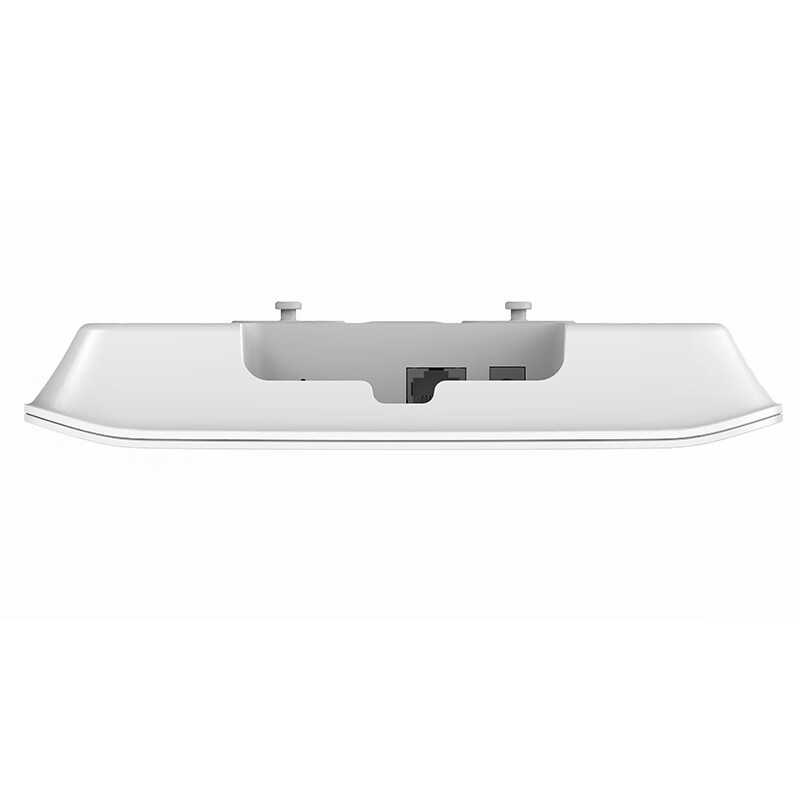

**Dimensions:** 198mm x 158mm x 33.7mm
**Weight:** <0.35kg
**Ethernet Ports:** 10/100Mbps auto-negotiation, PoE support
**Power Supply:** DC 12V/1.5A or PoE
**Antenna:** Built-in omnidirectional antenna
**Operating Temperature:** 0°C to 40°C
**Storage Temperature:** -40°C to 70°C
**Operating Humidity:** 5% to 95% (non-condensing)
**Storage Humidity:** 5% to 95% (non-condensing)
**Safety Standards:** GB4943, IEC60950-1
**EMC Standards:** GB9254, EN301489, EN50155, EN50121
**Wireless RF Regulations:** EN300328, EN301893
**MTBF:** >250,000 hours
**Software Features:**
- AP and Router modes
- Maximum of 110 concurrent users
- Support for up to 8 SSIDs
- VLAN support
- WPA/WPA2 data encryption
- Remote management via app
- Web-based local management
**Security Features:**
- Support for PSK authentication
- Blacklist and whitelist support
**Management and Maintenance:**
- MACC platform remote management
- Automatic RF adjustment
- Unified configuration and monitoring platform
