SAMZHE Cat6 Shielded Crystal Head, Gigabit Network Connector, 50U Gold-Plated Engineering-Grade RJ45 Cable Connector, Cat6 Two-Piece Connector, 10 Pieces, XWJ6010U

SKU : 100013910163

Availability : In stock
4.7
Weight : 0.05 kg
Length : 10 cm
Height : 5.5 cm

GHS 28.28

GHS 30.54

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** SAMZHE

**Product Name:** CAT.6 Shielded Crystal Head

**Material:** Nickel-plated metal shell

**Contact Copper Sheet:** Triple fork design

**Gold Plating Thickness:** 50U

**Network Standard:** Gigabit Ethernet

**Interface Type:** RJ45

**Packaging:** Exquisite box packaging

**Features:**

Gold-plated crystal head with engineering-grade standards

Rigorous quality control from raw material procurement to sales and service

Plug/pull tension test, salt spray test, and endurance test

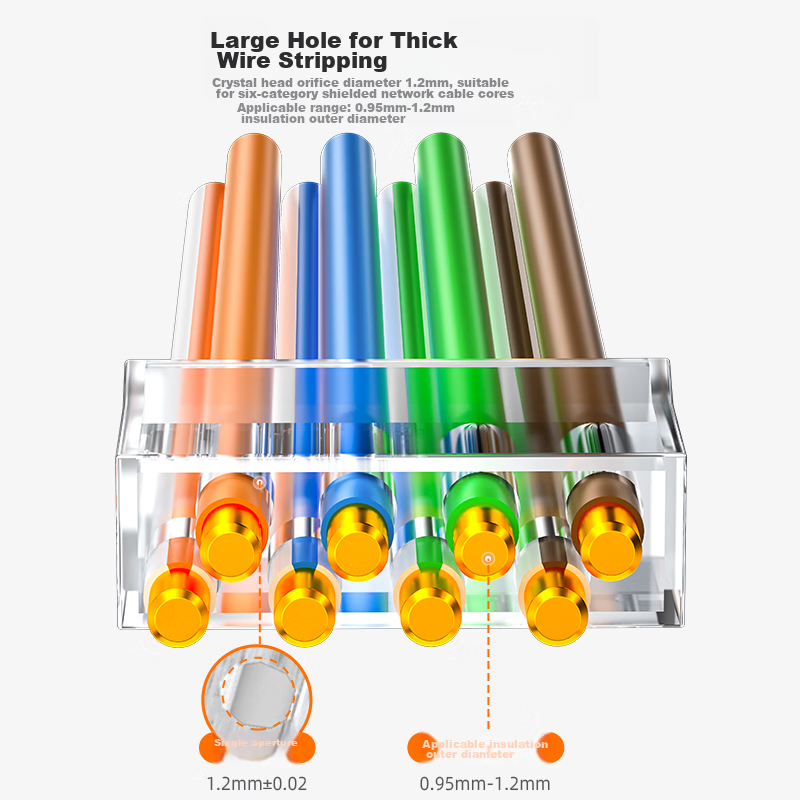

Suitable for CAT.7/CAT.8 cables with wire core diameter of 0.95mm-1.2mm

Double-layer electroplating process for durability

Tailored for high-speed and stable transmission in engineering applications

Shielded design for interference resistance

Easy installation with matching cable trough

**Dimensions (Hand-measured):**

Length: 21.3mm

Width: 12.8mm

Height: 8.4mm

**Application:**

Widely used in computers, TVs, switches, routers, hubs, set-top boxes, ADSL, and wireless devices

Suitable for home, office, surveillance, data centers, educational networks, server rooms, and cyber cafes

**Installation Instructions:**

Follow T568A or T568B standards for straight-through or crossover connections

Use a specialized crimping tool for proper termination

Ensure correct wire sequence and secure crimping for reliable performance

**Note:** The above specifications are based on laboratory tests conducted by SAMZHE.
