SAMZHE CAT6A Network Cable Connector, 10 Gigabit Ethernet Crystal Head, Two-Piece 50U Gold-Plated CAT6A Professional Grade RJ45 Shielded Connector, 50 Pieces, WJ6A050U

SKU : 100013910173

Availability : In stock
4.7
Weight : 0.2 kg
Length : 13.8 cm
Height : 6.6 cm

GHS 268.47

GHS 289.95

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** SAMZHE

**Product Name:** CAT.7/CAT.8 Shielded Crystal Head

**Material:** Nickel-plated Copper Shell

**Contact Pins:** Triple Fork Design with 50u" Gold Plating

**Network Standard:** 10Gbps Ethernet

**Interface Type:** RJ45

**Packaging:** Exquisite Box Packaging

**Features:**

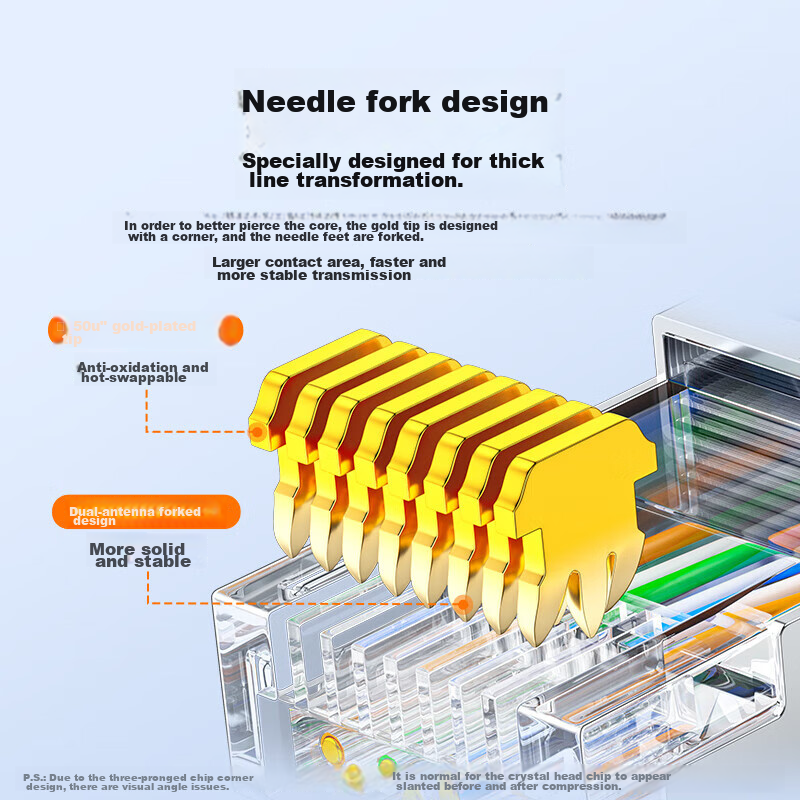

Triple fork design for enhanced contact area and stability

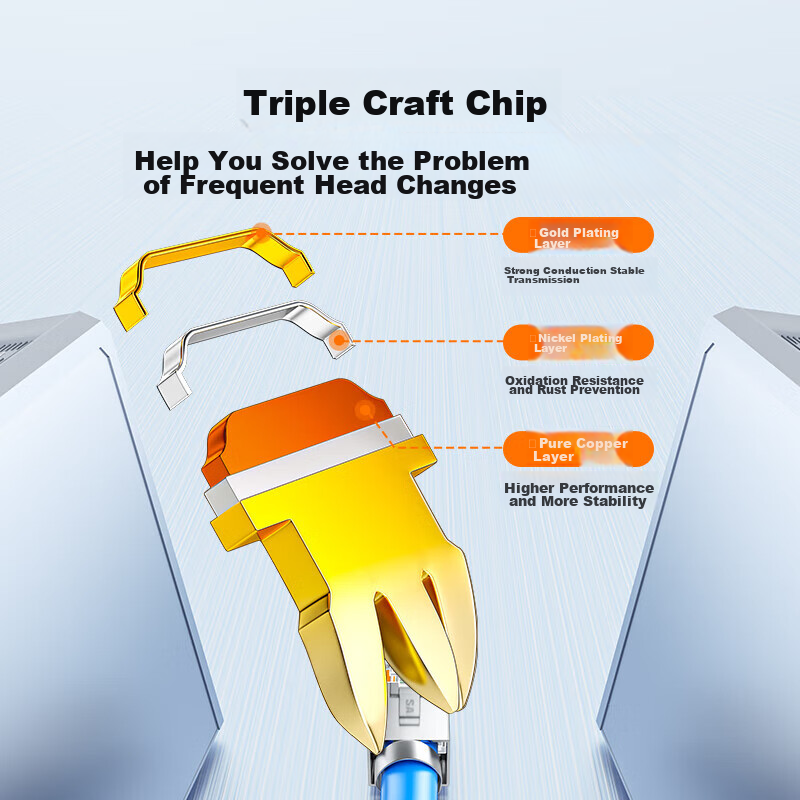

50u" gold-plated contact pins for durability and stable transmission

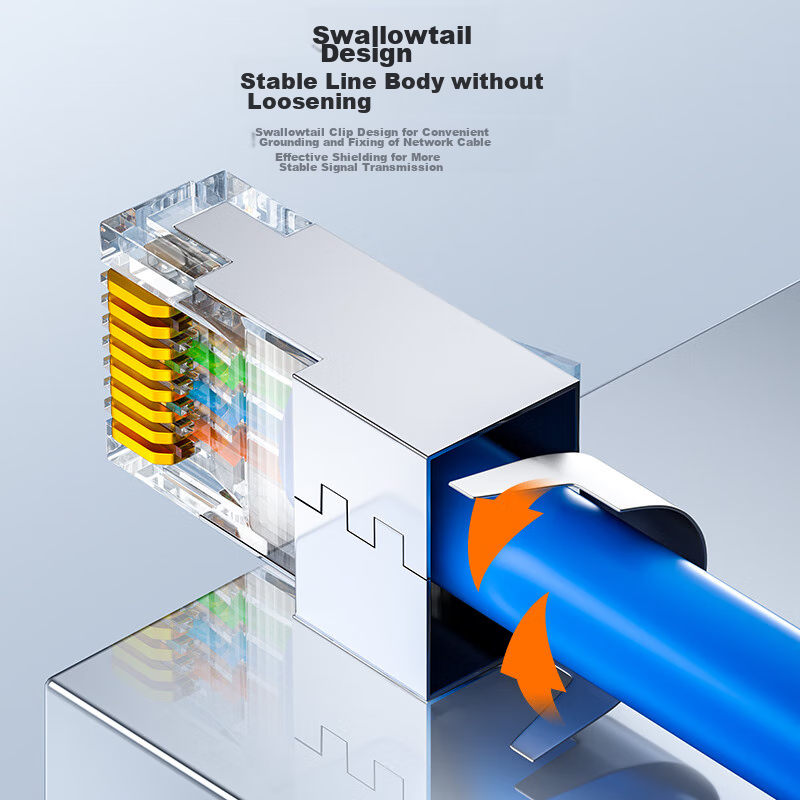

Shielded nickel-plated copper shell for interference protection

Supports 10Gbps Ethernet for high-speed data transfer

Suitable for a wide range of devices including computers, TVs, routers, etc.

Ideal for home, office, surveillance, and data center network installations

**Testing Standards:**

Pull test: Minimum 20 pounds (89N) tension for at least one minute without oxidation or rust

Durability test: Over 2000 insertions and withdrawals with stable performance

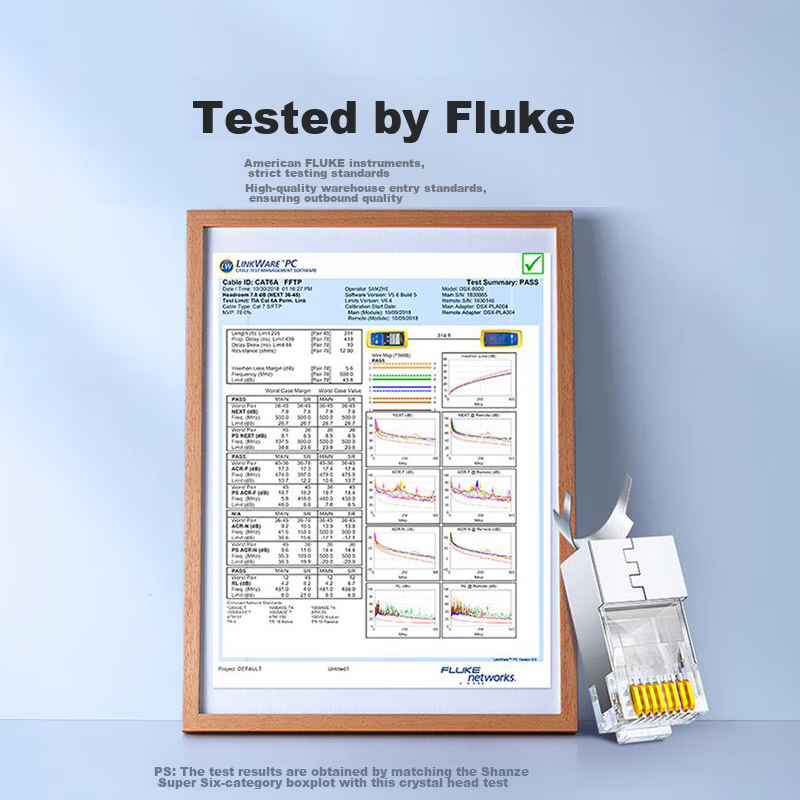

Environmental tests: Salt spray, high and low-temperature cycles, and FLUKE testing for 72 hours

**Compatibility:**

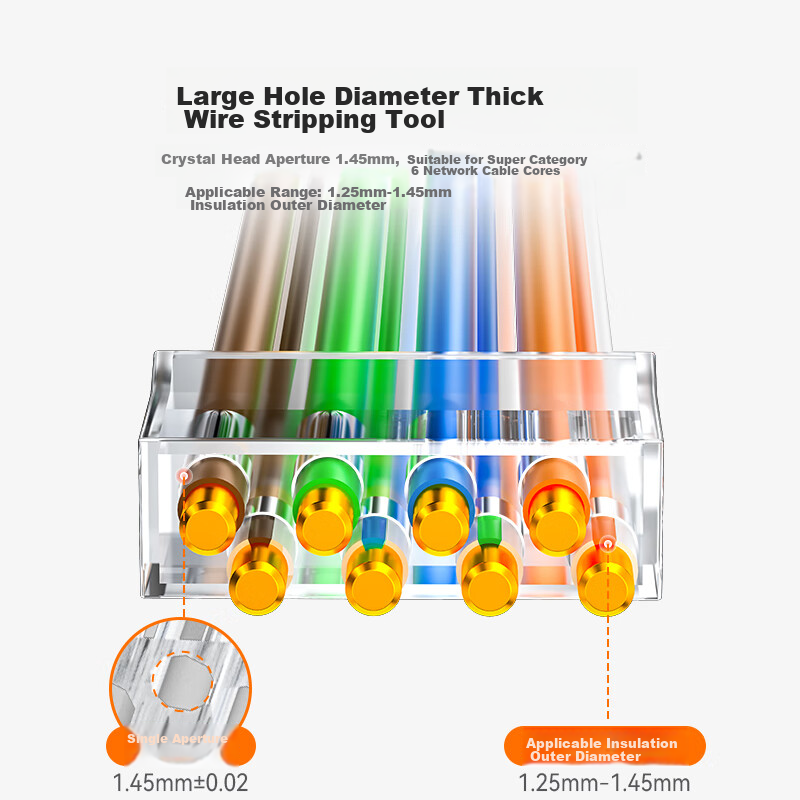

Compatible with CAT.7/CAT.8 cables with insulation outer diameter ranging from 1.25mm to 1.45mm

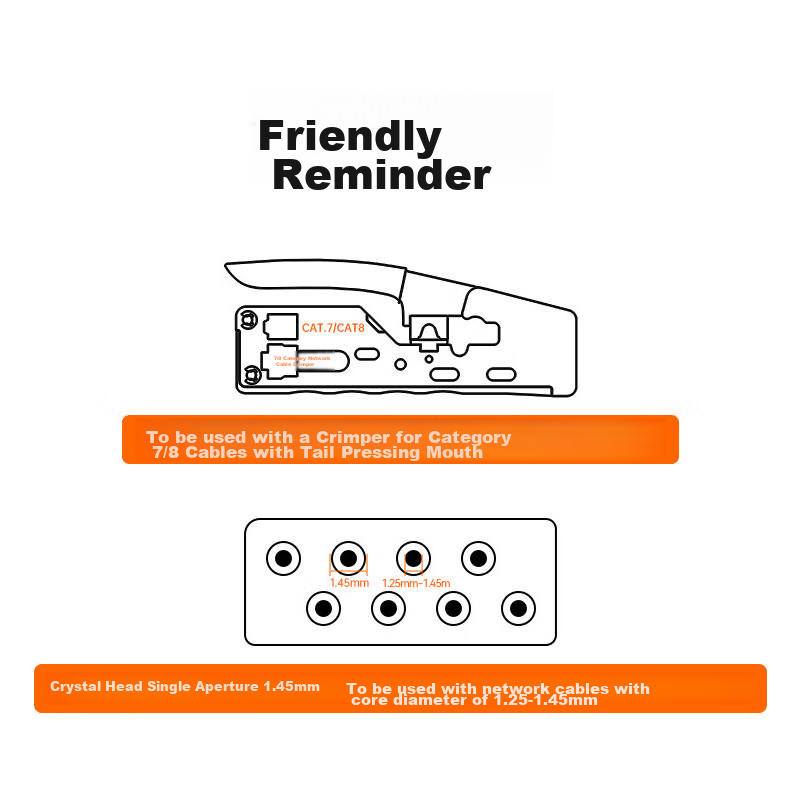

Requires the use of a network cable clamp with a tail pressing function

**Installation Instructions:**

1. Strip the outer sheath of the network cable to reveal the eight metal wires

2. Follow T568A or T568B wiring standards for straight-through or crossover connections

3. Use a dedicated wire cutter to prepare the cable for insertion into the crystal head

4. Trim excess wires and insert the cable into the crystal head

5. Use a CAT.7 cable clamp to crimp the crystal head securely

**Product Dimensions (Hand-measured):**

Length: 21.6mm

Width: 12.6mm

Height: 11.8mm

**Note:** The above specifications are based on laboratory tests conducted by SAMZHE.
