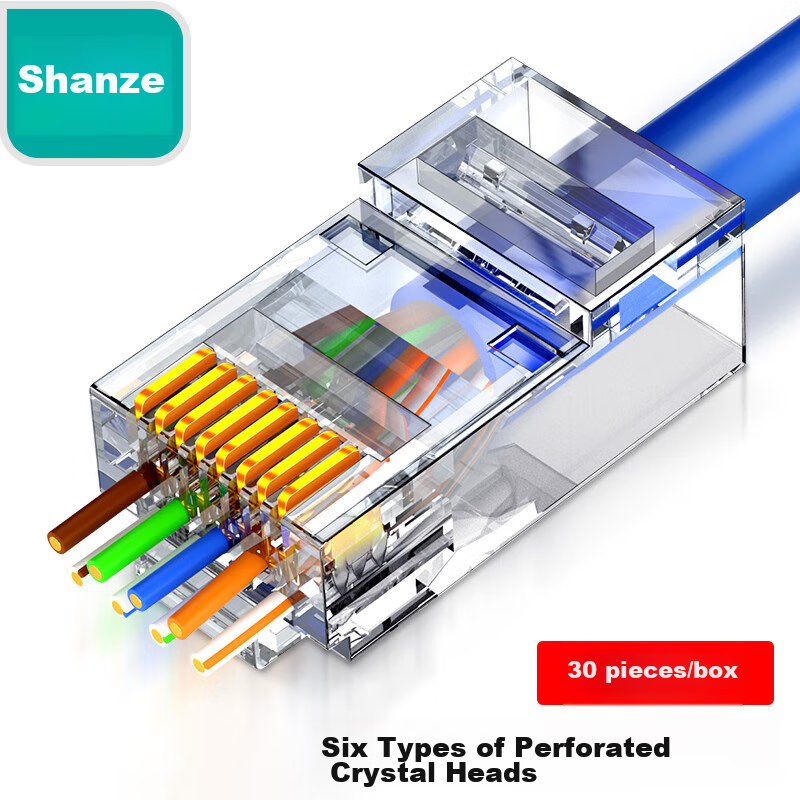

SAMZHE Category 6 Straight-Through Punch-Down Crystal Head, 8P8C Pure Copper Gold-Plated Gigabit Network Connector, RJ45 Ethernet Cable Plug, CAT6 Through-Hole Crystal Head, 30 Pieces, CKT630

SKU : 100005809245

Availability : In stock
4.7
Weight : 0.05 kg
Length : 15 cm
Height : 2 cm

GHS 43.12

GHS 46.57

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** SAMZHE

**Product Name:** CAT5/CAT6 Punch Down Crystal Head

**Material:** Environmentally friendly PC

**Contact Copper Sheet:** Triple-core chip

**Gold Plating Thickness:** 3u" engineering grade

**Interface Type:** RJ45 standard interface

**Packaging:** Exquisite bag packaging

**Dimensions:** 22.4mm x 11.6mm

**Package Contents:** Available in 10-pack or 30-pack

**Features:**

Designed for CAT5/CAT6 cables

Suitable for single-strand wire diameters of 0.9mm-1.08mm

3u" thick gold plating for enhanced conductivity

Triple-core chip for high-speed transmission

Easy punch-down design for quick and efficient use

Suitable for various applications including computer, switch, hub, ADSL, router, and TV with RJ45 interface

Standard RJ45 network port for stable data transmission

Suitable for home and office wiring, multimedia entertainment centers, data centers, security/surveillance wiring, and cyber cafes

**Usage Instructions:**

1. Prepare a specialized network cable clamp

2. Insert the cable into the clamp and strip off the outer layer

3. Separate the 4 pairs of wire cores

4. Strip the wire cores and cut the front ends

5. Cut open the outer sheath, leaving about 25mm

6. Arrange the wire cores according to T568B

7. Insert the wire cores into the crystal head

8. Place the crystal head in the clamp and press the interface

9. Cut off any excess wire cores

**Note:** Dimensions are hand-measured and may have slight variances.

**Additional Information:**

Each crystal head is randomly shipped in a pack of 100 units, providing convenience and versatility for various wiring needs.
