Product Specifications:
Model: e835, e845, e825-s, e865-s, e835-S, e845-S
Dimensions: 48x180mm, 48x180mm, 46×185mm, 47×193mm
Connector: XLR-3
Frequency Response: 80-15000 Hz, 40-16000 Hz, 40-16000 Hz, 40-20000 Hz
Transducer Principle: Dynamic, Dynamic, Dynamic, Pre-polarized condenser
Polar Pattern: Cardioid, Cardioid, Supercardioid, Supercardioid
Weight: 330g, 330g, 330g, 311g
Sensitivity: 1.5 mV/Pa, 2.7mV/Pa, 1.8 mV/Pa, 3mV/Pa
Nominal Impedance: 350Ω, 350Ω, 350Ω, 200Ω
Phantom Power: 12-48V
Maximum Sound Pressure Level: 142 dB
Equivalent Noise Level: 21dB(A)

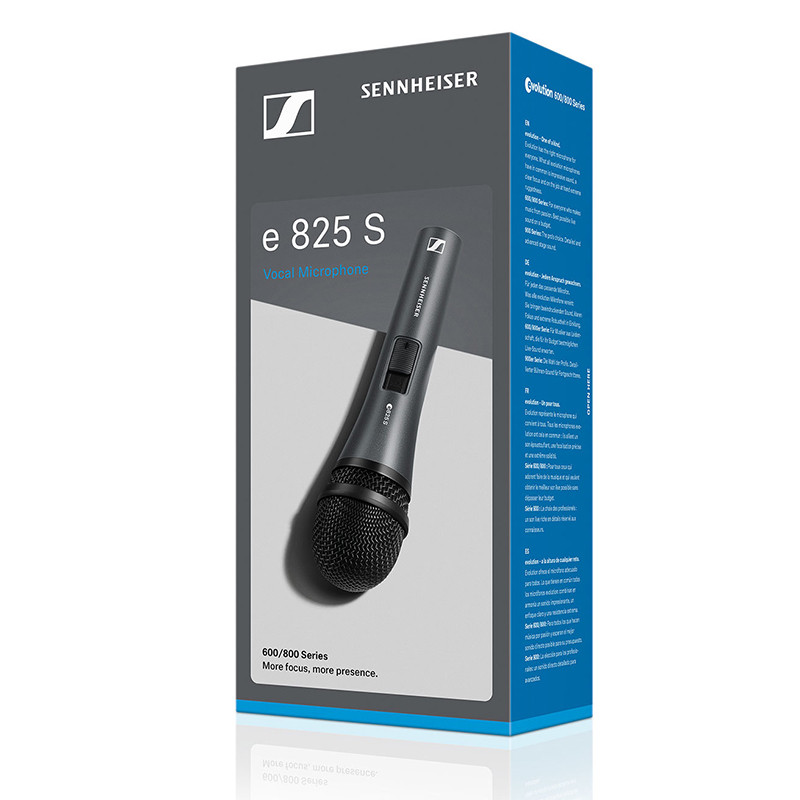

Included Accessories: MZQ800 microphone clamp, carrying pouch, user manual, warranty certificate
Additional Features:

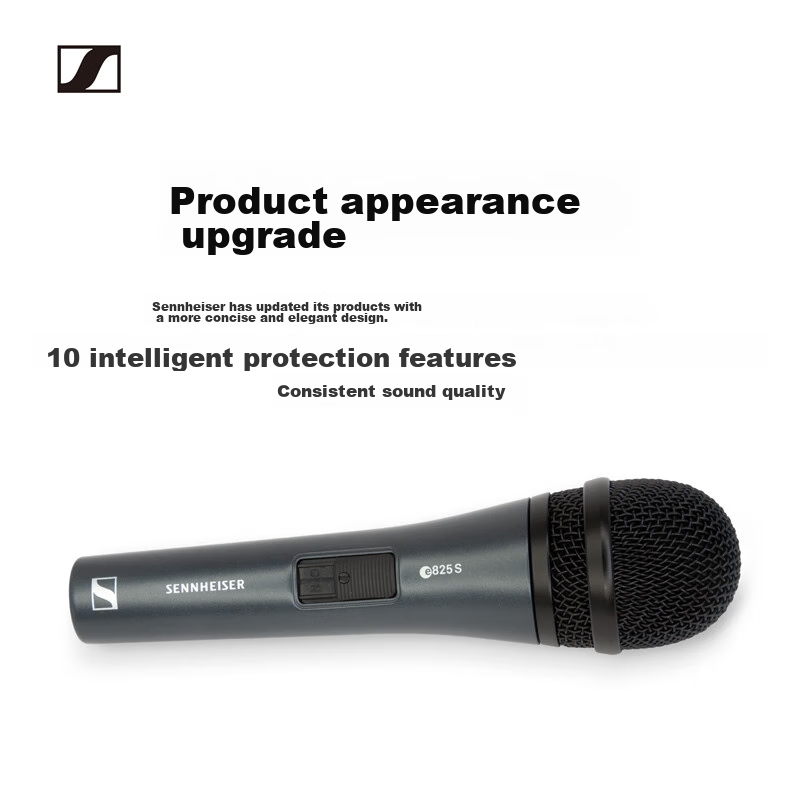

Upgraded product appearance with a new brand logo
e825S: Cardioid universal microphone suitable for instrument and vocal pickup
Features a filter to reduce breath and wind noise, reinforced steel mesh grille to prevent wear and tear, and an on/off switch for stage control
e825S: Ideal for vocal and instrument applications, with a durable coil for high-frequency signal handling and amplification without distortion

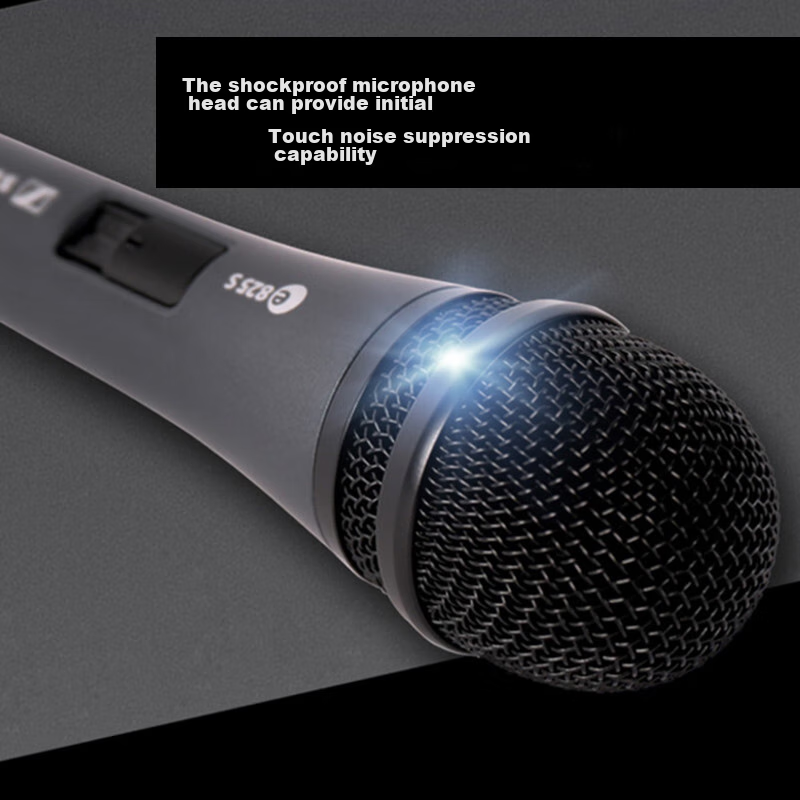

e825S: Equipped with a shock-mounted capsule for noise reduction, durable metal construction, and built-in noise reduction for breath and wind noise
S5Z85: Suitable for dynamic vocal live broadcasting and applications requiring feedback suppression

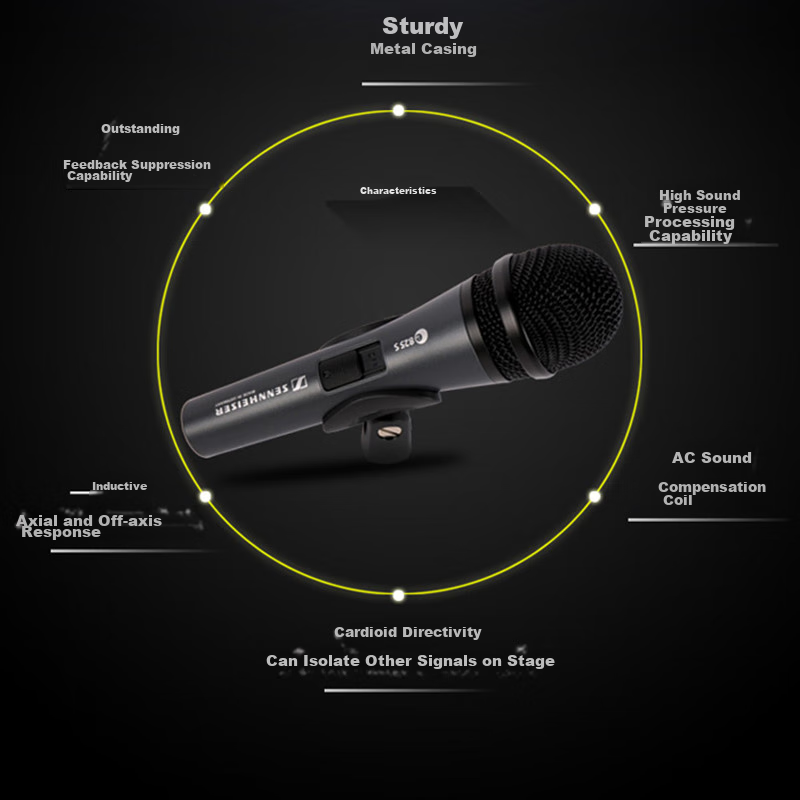

e825S: Features a rugged metal housing, excellent feedback suppression, high sound pressure handling, and cardioid polar pattern for isolating other signals on stage
Technical Specifications:
Transducer Principle: Dynamic
Polar Pattern: Cardioid
Frequency Response: 80-15000Hz
Free-field Sensitivity (1kHz): 1.5mV/Pa
Nominal Impedance: 350Ω
Minimum Terminating Impedance: 1000Ω
Connector: XLR-3
Dimensions: d48x180mm
Weight: 330g
