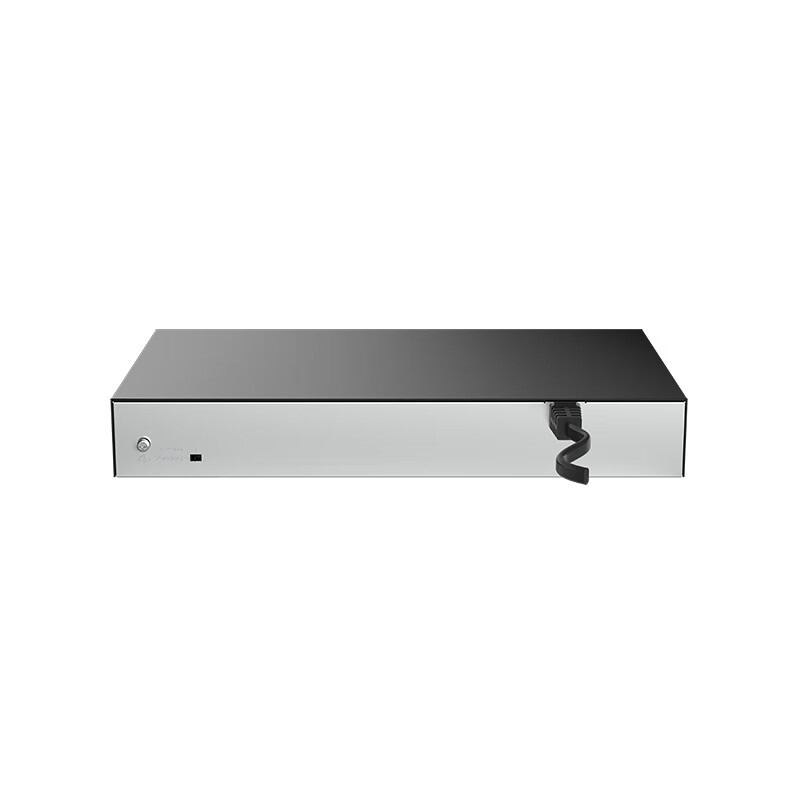

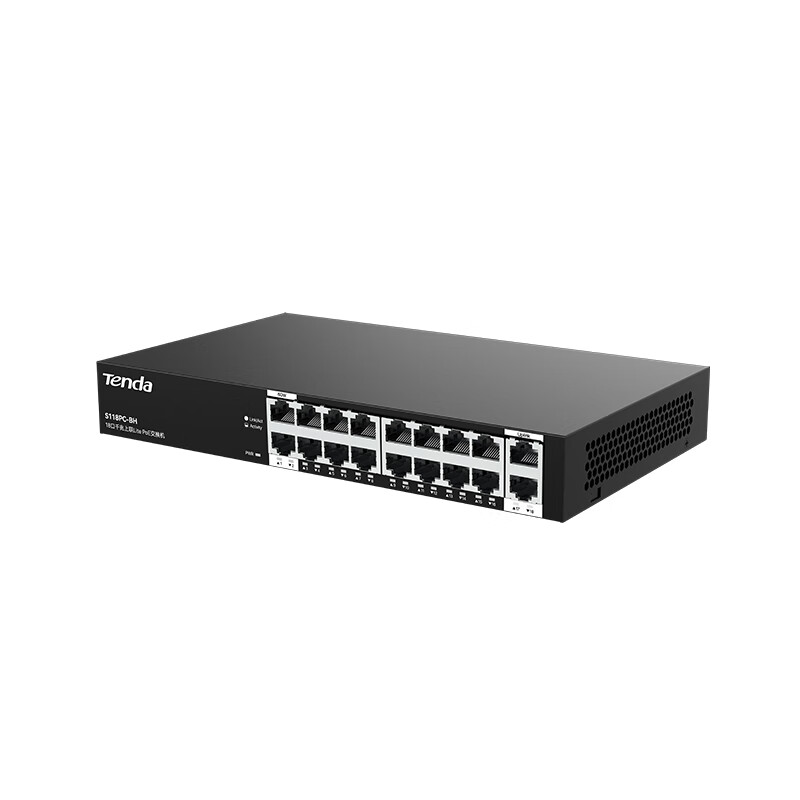

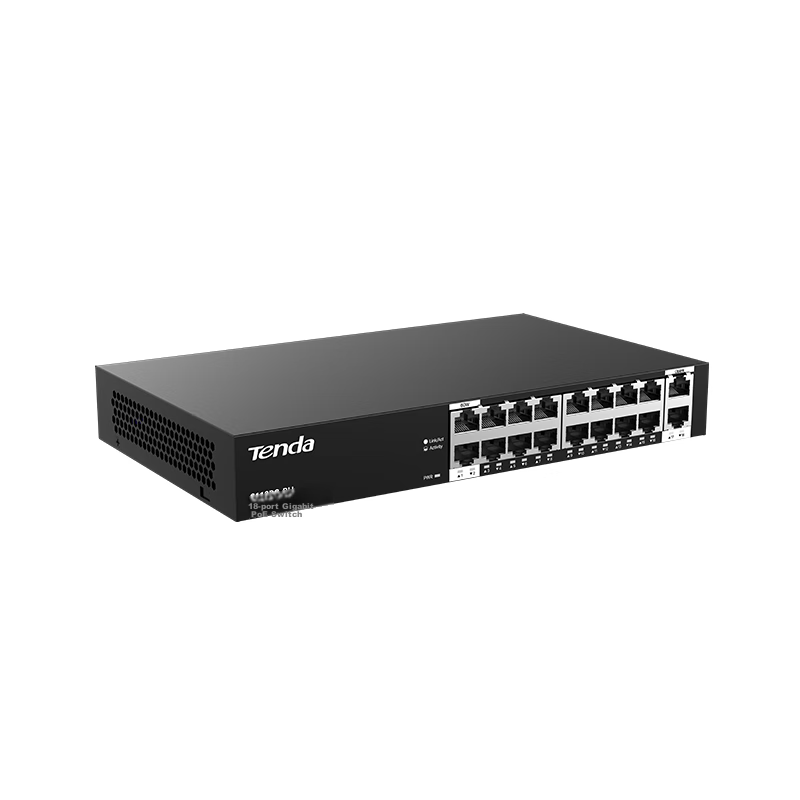

Tenda 16-Port 100Mbps PoE Switch + 2 Gigabit Uplink, Home And Enterprise Engineering Monitoring Network Cable Splitter, Network Splitter S118PC-BH

SKU : 100140696994

Availability : In stock
4.7

Write your review

Weight : 1.195 kg
Length : 29.7 cm
Height : 5.6 cm

GHS 578.44

53.39

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** Tenda

**Model:** S118PC-BH

**Hardware Specifications:**

- **Network Standards:** IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

- **MTBF:** 100,000 hours

- **Indicators:** Each port has 1 Link/Act indicator light, each device has 1 Power indicator light

- **Fixed Ports:** 16 x 10/100Base-T Ethernet ports (Data/Power), 2 x 10/100/1000Base-T Ethernet ports (Data)

- **Lightning Protection:** >4KV

- **Forwarding Mode:** Store-and-forward

- **Switching Capacity:** 7.2Gbps

- **Packet Forwarding Rate:** 5.4Mpps

- **MAC Address Table:** 4K

- **PoE Power Supply:** Ports 1-2 compatible with 802.3af/at/bt standards, Ports 3-16 compatible with 802.3af/at standards

- **Input Voltage:** AC 220V 50Hz

- **Product Dimensions:** 247mm x 150mm x 37mm

- **Total Power Consumption:** ≤167W

- **Operating Temperature:** 0°C to 45°C

- **Storage Temperature:** -40°C to 70°C

- **Operating Humidity:** 10% to 90% RH non-condensing

- **Storage Humidity:** 5% to 90% RH non-condensing

**Features:**

- **PoE Features:** Intelligent PoE power supply, intelligent power management

- **Power Management:** Automatically cuts off low-priority ports when devices exceed rated power

- **Lightning Protection:** 4KV high-level protection, supports short-circuit and overload protection

- **Network Extension:** Supports one-click DIP switch to extend network up to 250m

**Additional Information:**

- **Power Output:** Ports 1-2: Max 60W, Ports 3-16: Max 30W

- **Compatibility:** Supports various devices such as IP cameras, speakers, and lighting equipment

- **Power Supply:** Supports up to 16 400W high-definition surveillance cameras

- **Extended Transmission:** Enables smooth video transmission up to 250m

**Package Contents:**

- 1 x Tenda S118PC-BH PoE Switch

- Power Cord

- User Manual
