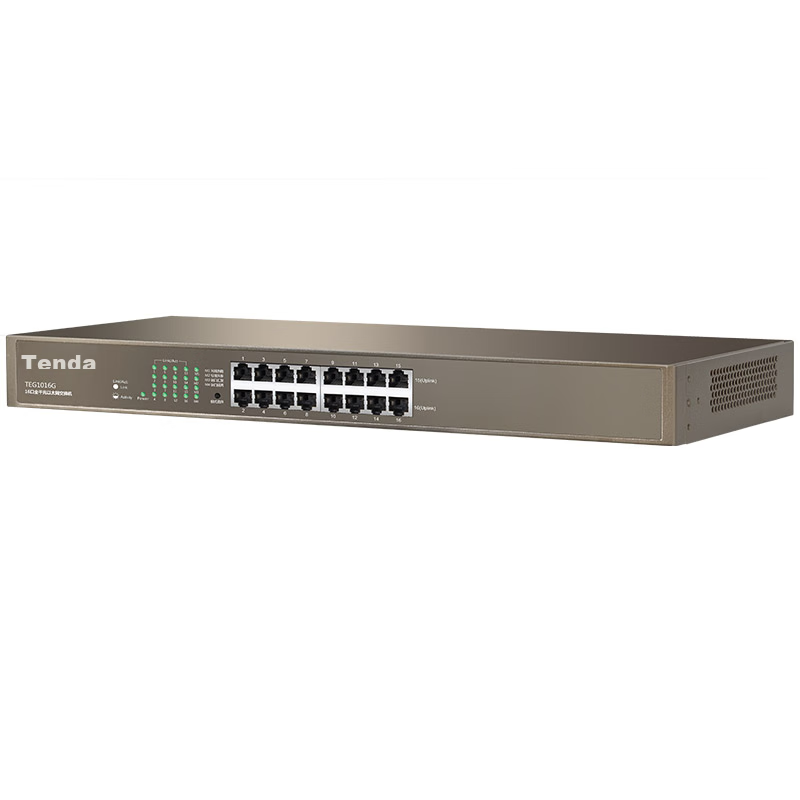

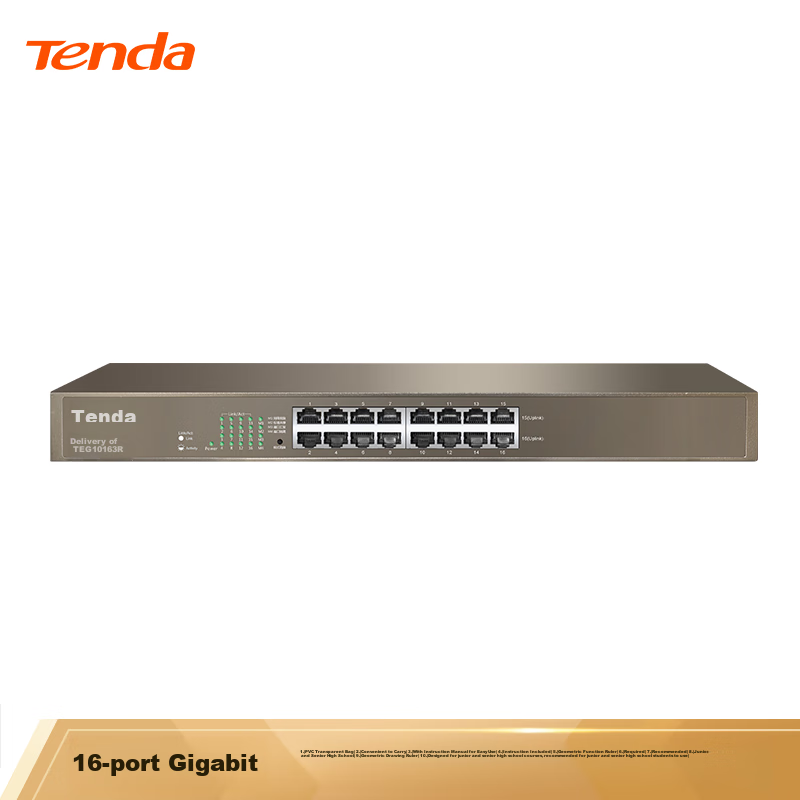

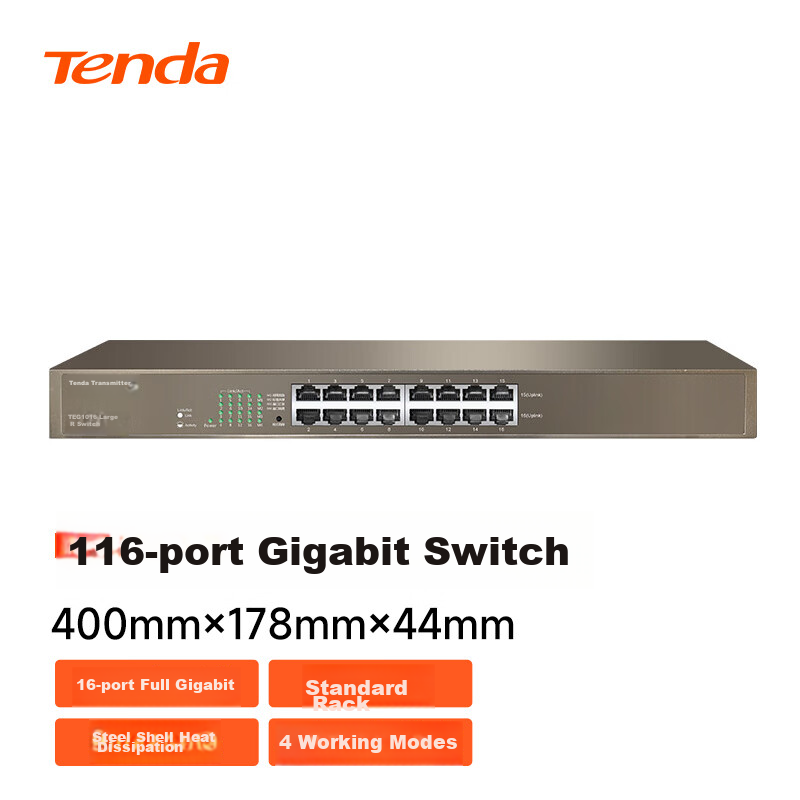

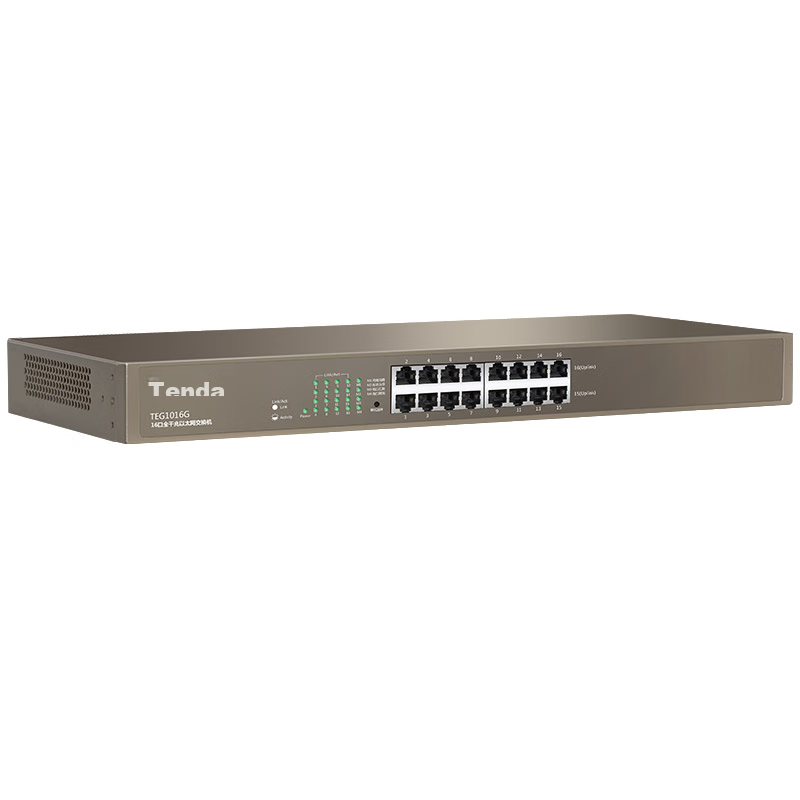

Tenda 16-Port Gigabit Network Switch, Steel Shell Standard Rack-Mounted, Enterprise Engineering Monitoring Dedicated Network Cable Splitter Expander Distributor TEG1016G

SKU : 165592

Availability : In stock
4.7
Weight : 2.44 kg
Length : 53.4 cm
Height : 8 cm

GHS 596.53

GHS 644.25

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** Tenda

**Model:** TEG1016G

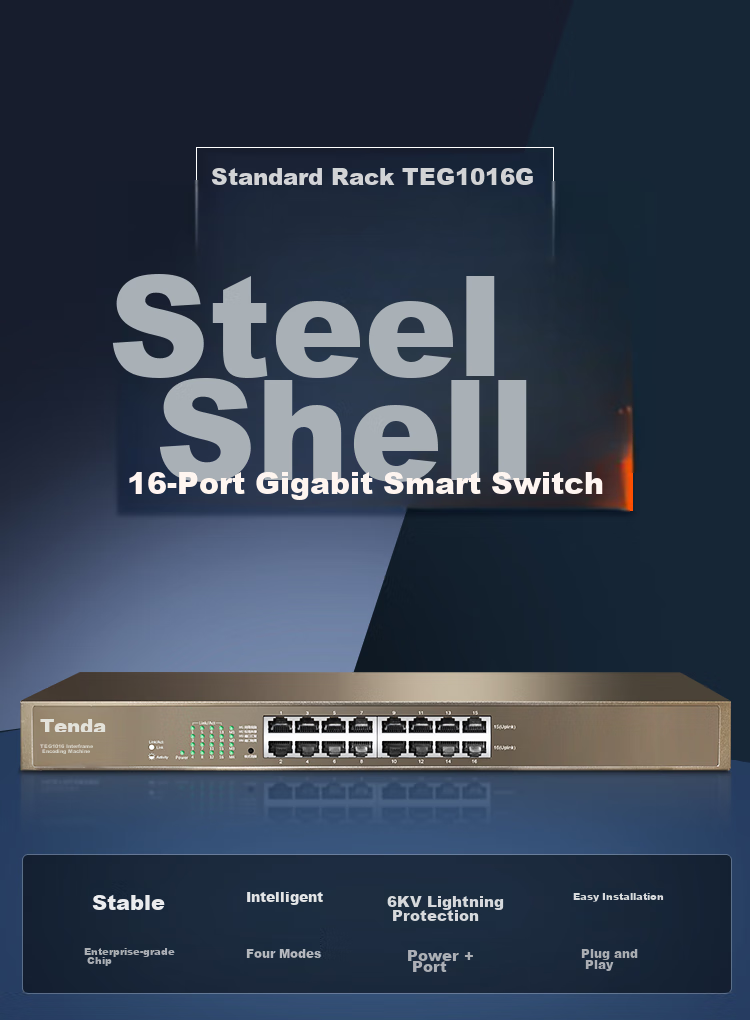

- 16-port Gigabit Smart Switch

- Steel casing

- 6KV lightning protection

- Easy installation

- Enterprise-level chipset

- Four working modes: Aggregation Uplink, Standard Sharing, Port Clone, Port Isolation

- Suitable for batch networking, video surveillance, wireless networking, hotel anti-small router, etc.

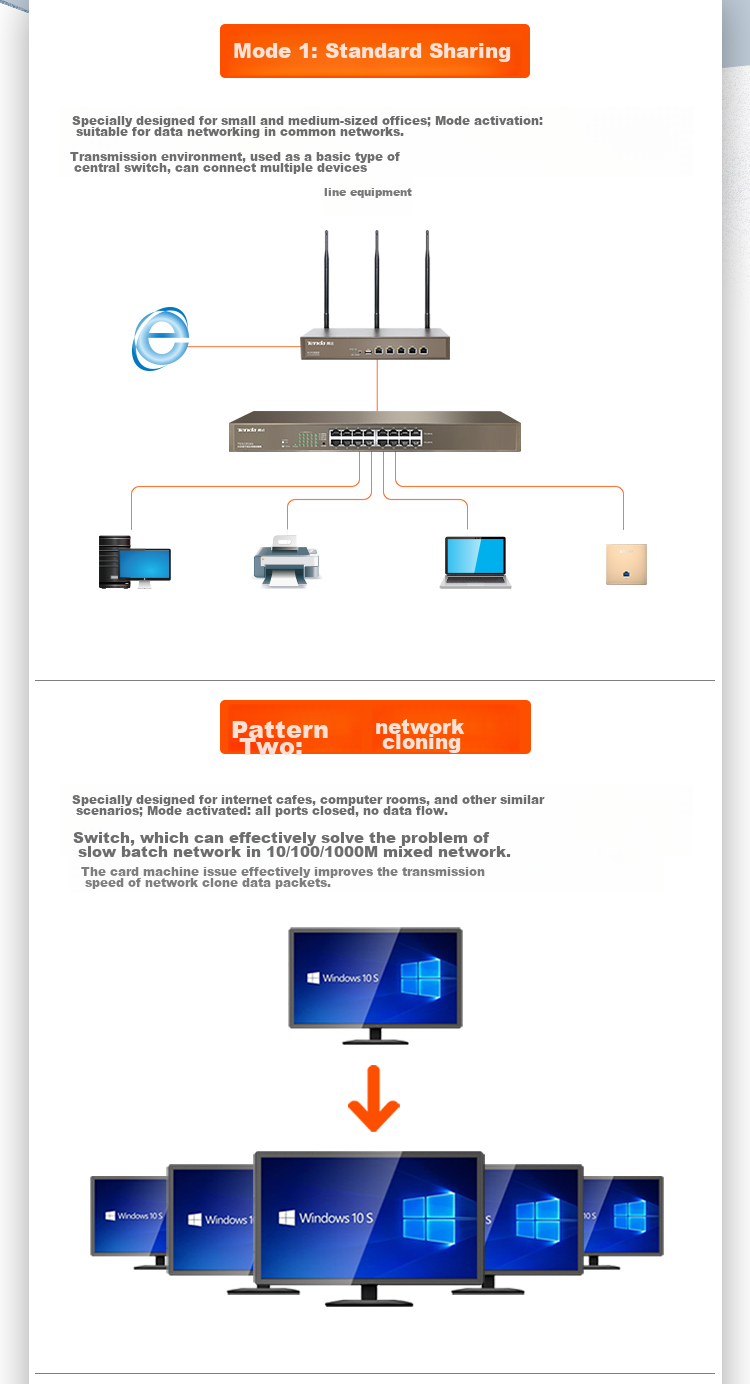

- Mode 1: Standard Sharing for small and medium offices

- Mode 2: Network Clone for cyber cafes, server rooms, etc.

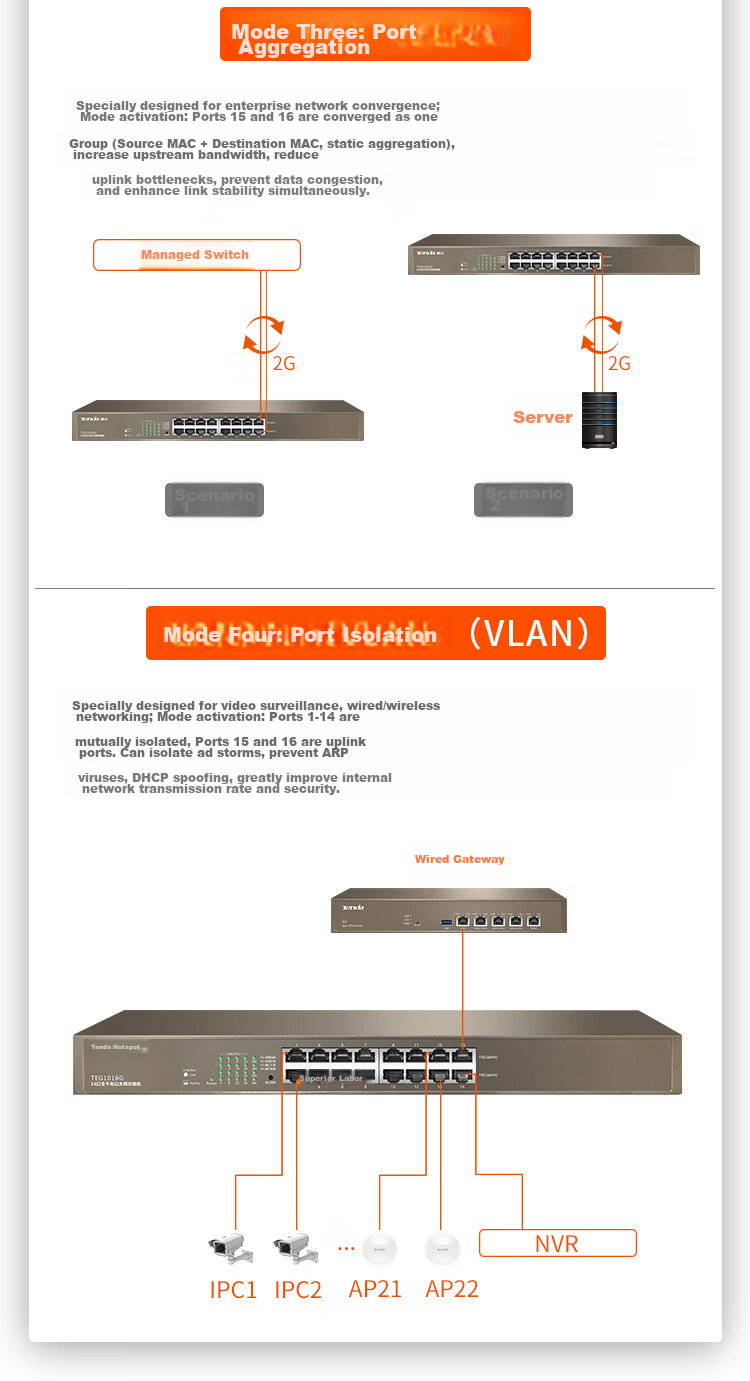

- Mode 3: Port Aggregation for enterprise aggregation networking

- Mode 4: Port Isolation (VLAN) for video surveillance, wired/wireless networking

- 16 Gigabit Ethernet ports with full duplex speed up to 2000Mbps

- Plug and play, no configuration needed

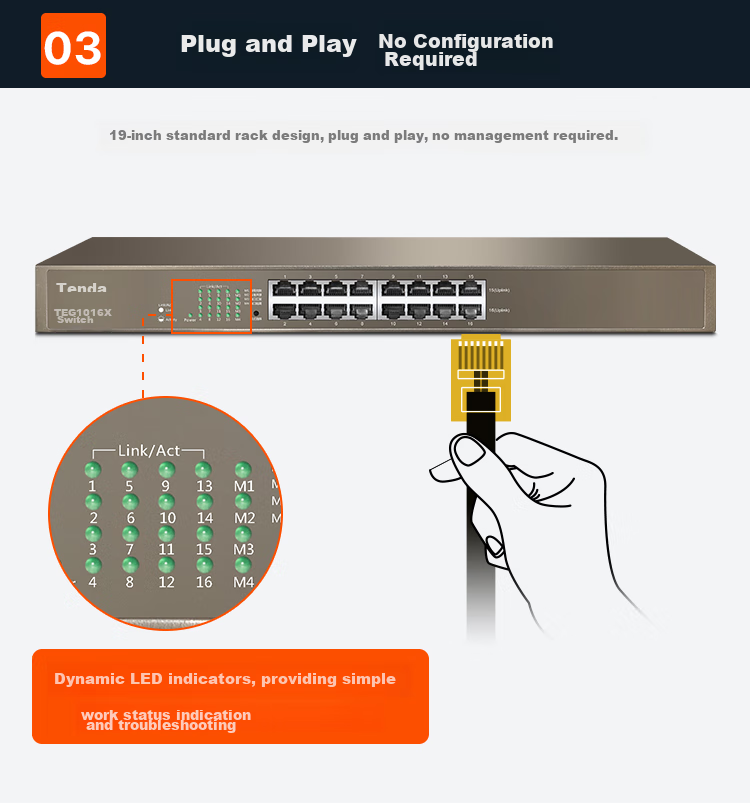

- Dynamic LED indicators for easy status monitoring and troubleshooting

- Professional lightning protection with 6KV port protection and level 4 lightning protection for power supply

- Flexible and stable networking for diskless systems, network cloning, etc.

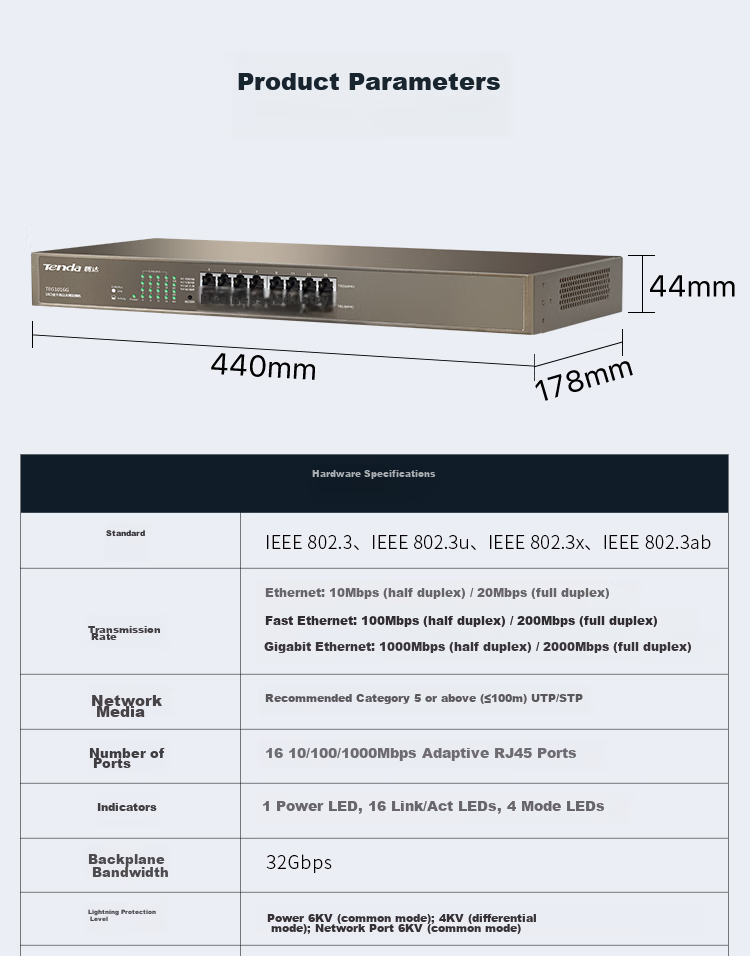

- Hardware Specifications:

- - Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

- - Ethernet: 10Mbps (half duplex) / 20Mbps (full duplex)

- - Fast Ethernet: 100Mbps (half duplex) / 200Mbps (full duplex)

- - Gigabit Ethernet: 1000Mbps (half duplex) / 2000Mbps (full duplex)

- - Network Media: Cat5e or above (≤100m) UTP/STP

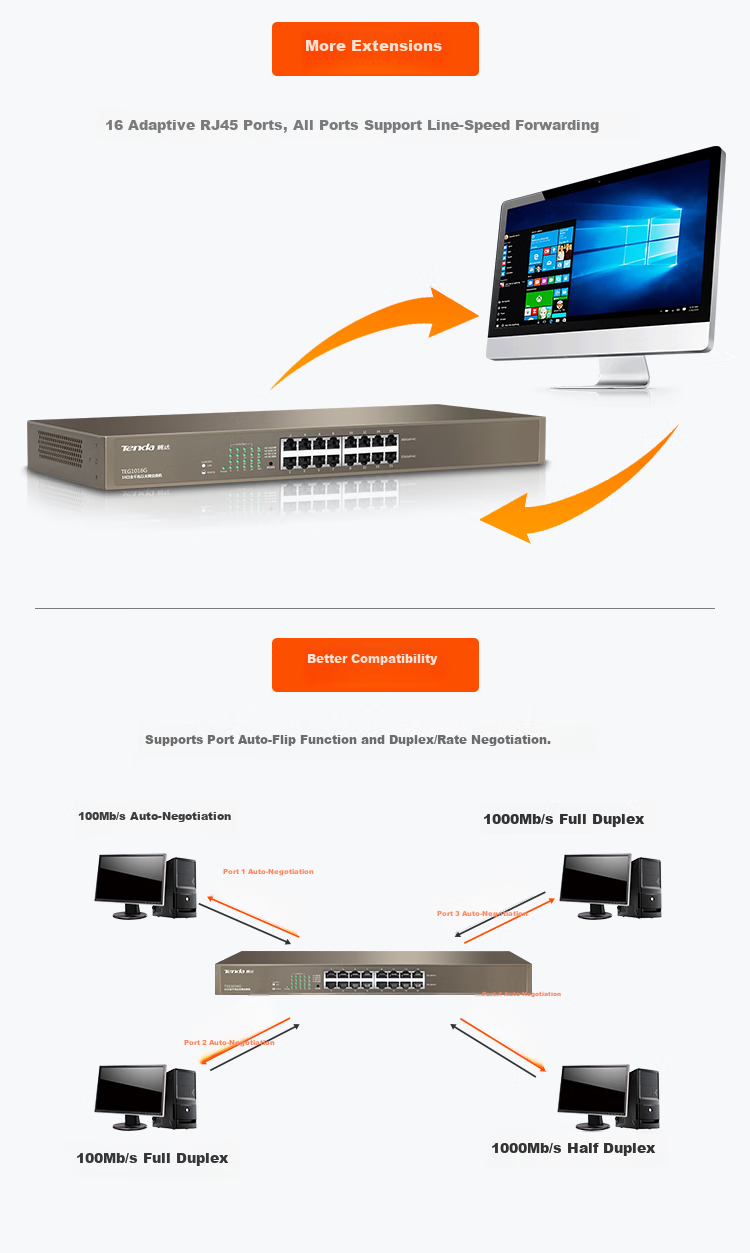

- - Port: 16 10/100/1000Mbps adaptive RJ45 ports

- - Backplane Bandwidth: 32Gbps

- - Lightning Protection Level: 6KV (common mode) for power, 4KV (differential mode) for power, 6KV (common mode) for ports

- - Input Voltage: 100~240VAC, 50/60Hz

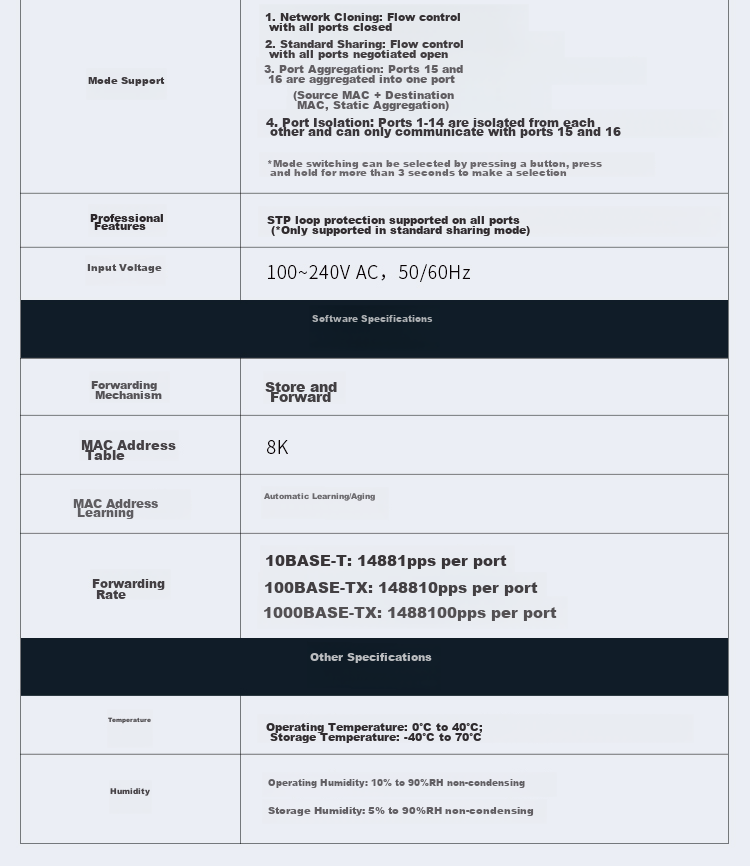

- Software Specifications:

- - Forwarding Mechanism: Store-and-forward

- - MAC Address Table: 8K

- - MAC Address Learning: Automatic learning/aging

- - Forwarding Rate: 10BASE-T: 14881pps per port, 100BASE-TX: 148810pps per port, 1000BASE-TX: 1488100pps per port

- Other Specifications:

- - Temperature: Operating: 0°C to 40°C, Storage: -40°C to 70°C

- - Humidity: Operating: 10% to 90% RH non-condensing, Storage: 5% to 90% RH non-condensing
