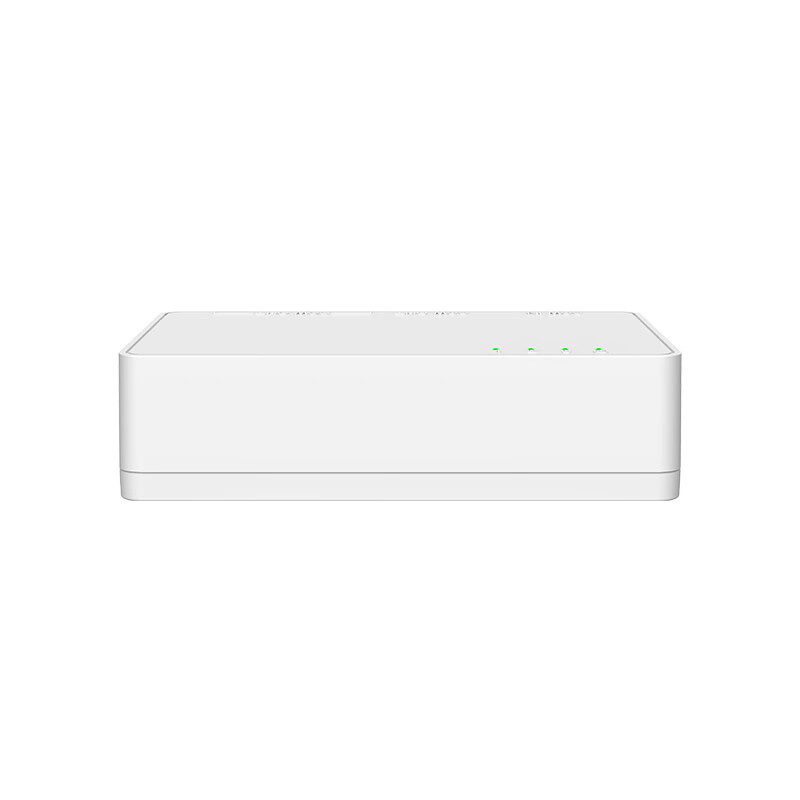

Tenda PoE Repeater, One-To 4-Port 100Mbps PoE Switch, Power Supply And Reception Integrated, One Input Two/three Outputs, Surveillance Network Switch, Ethernet Splitter S204PD

SKU : 100117592869

Availability : In stock
4.7
Weight : 0.07 kg
Length : 8.6 cm
Height : 2.6 cm

GHS 90.03

GHS 97.23

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

Brand: Tenda

Model: S204PD

Type: 4-port 100Mbps PoE Expansion Dock

Power Output: 60W

Expansion Level: Three-tier

Compatibility: Compatible with Tenda expansion series switches

Features: Safe construction, 60W output, three-tier expansion

Camera Support: Each tier supports connection of two cameras

Power Supply: No need for additional power adapter

Topology: PoE expansion dock cascading topology

Benefits: Cost-effective, reduces wiring complexity, enhances safety

Recommended Products for Pairing: S206PC-BH, SG206PC-BH, SG210PC-BH

Port Design: 1 input port supporting 60W, 2 output ports supporting 60W, 2 output ports supporting 30W

Power Extension: Extends power supply to endpoint locations

PoE Power: 1st port supports max 60W input, other ports support max 30W output

Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3X

MTBF: 250,000 hours

Indicators: Link/Ack indicator for each port, Power indicator for the device

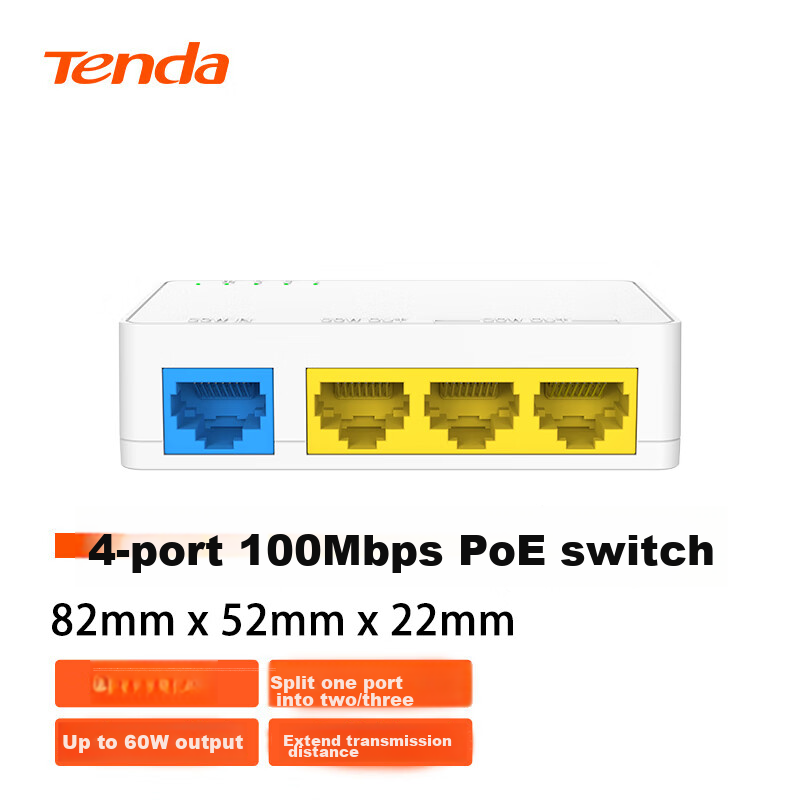

Fixed Ports: 4 x 10/100Base-T Ethernet ports, 1 x 60W PoE input, 2 x 60W PoE output, 2 x 30W PoE output

Lightning Protection: Yes

Forwarding Mode: Store-and-forward

Switching Capacity: 0.8Gbps

Packet Forwarding Rate: 0.59Mpps

MAC Address Table: 1K

Buffer: 512Kb

Dimensions: 82 x 52 x 22mm

Power Consumption: <3W

Operating Temperature: 0°C to 45°C

Storage Temperature: -40°C to 70°C

Operating Humidity: 10% to 90% RH non-condensing

Storage Humidity: 5% to 90% RH non-condensing

Certification: Safety testing report

(Note: The specifications are subject to change without prior notice.)
