Product Description

Brand: Tenda

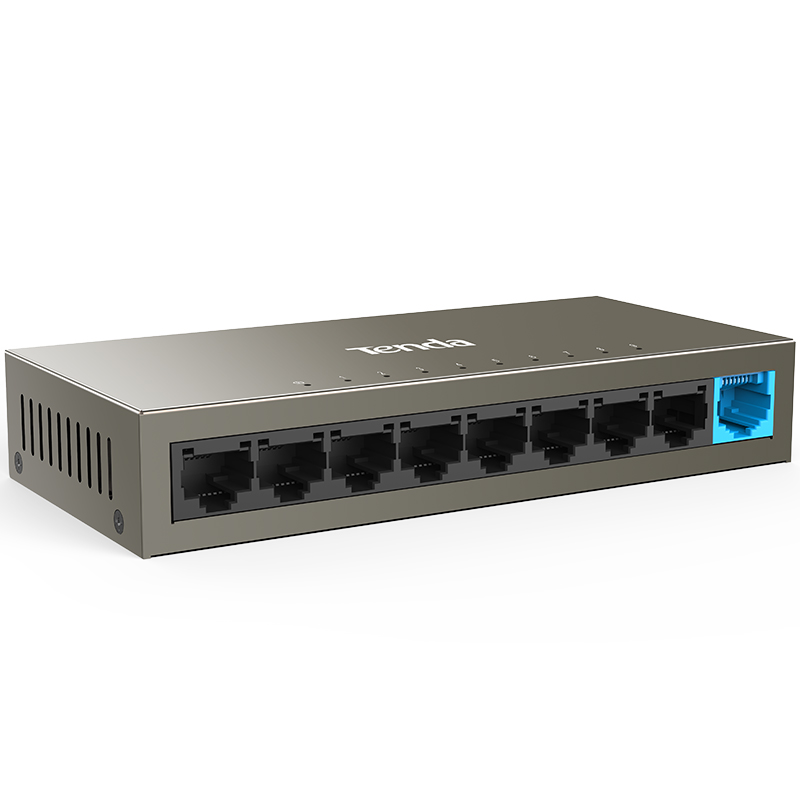

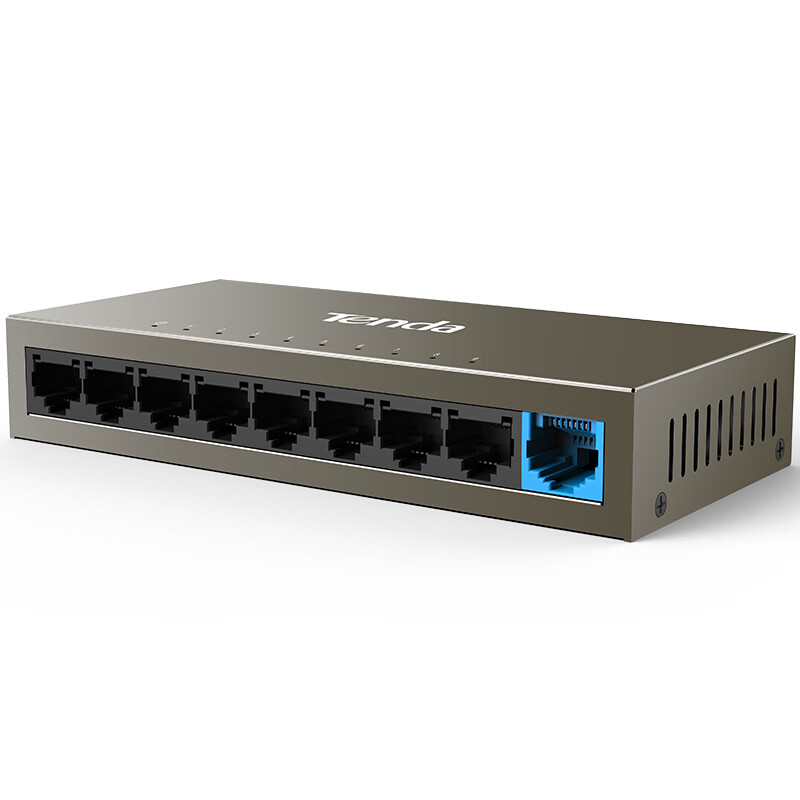

Model: TEF1109D 9-Port Fast Ethernet Switch

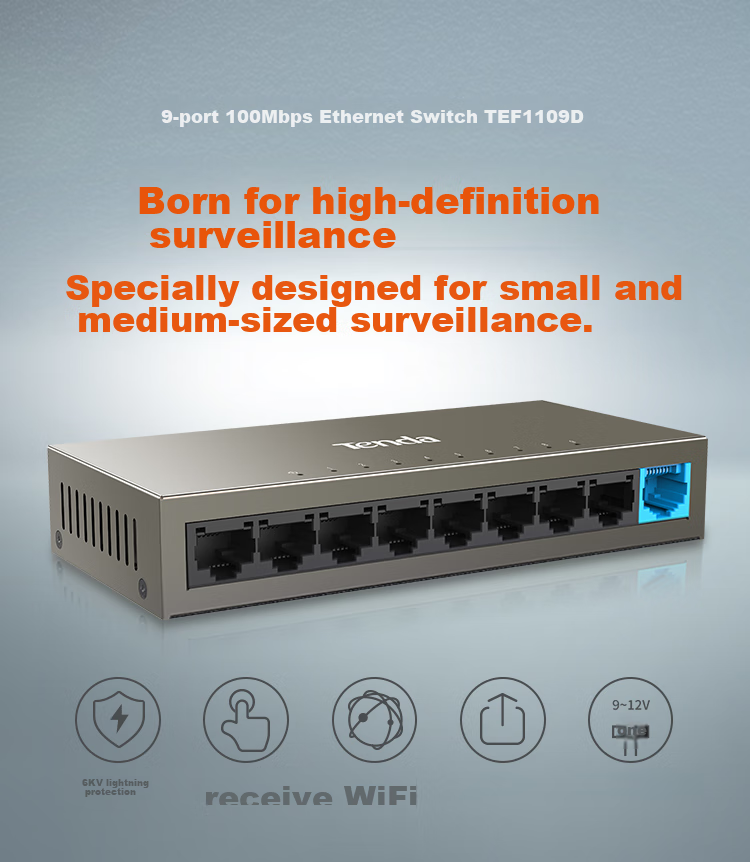

Designed for high-definition surveillance, the Tenda TEF1109D is specifically tailored for small to medium-sized surveillance systems. With a power input of 9-12VDC, this switch features a 6KV lightning protection and VLAN support for up to 250 meters long-distance transmission. Its large cache design of 1024Kb allows for smooth video transmission with up to 8 500W cameras without lagging. The professional 6KV lightning protection ensures reliable outdoor cabling and reduces damage caused by thunderstorms, enhancing system stability. Ideal for indoor server rooms, NVRs, and aggregation switches.

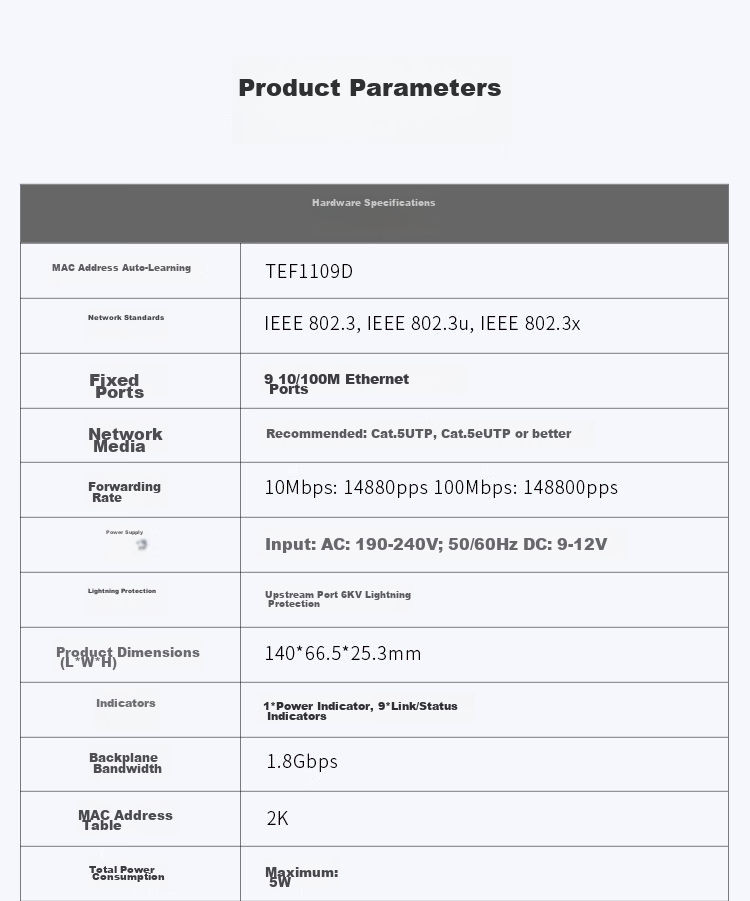

Specifications:

Hardware:

- MAC Address Auto-Learning

- Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x

- Fixed Ports: 9 x 10/100M Ethernet Ports

- Network Media: Cat.5UTP, Cat.5eUTP or better

- Forwarding Rate: 10Mbps: 14880pps, 100Mbps: 148800pps

- Power Input: AC: 190-240V; 50/60Hz, DC: 9-12V

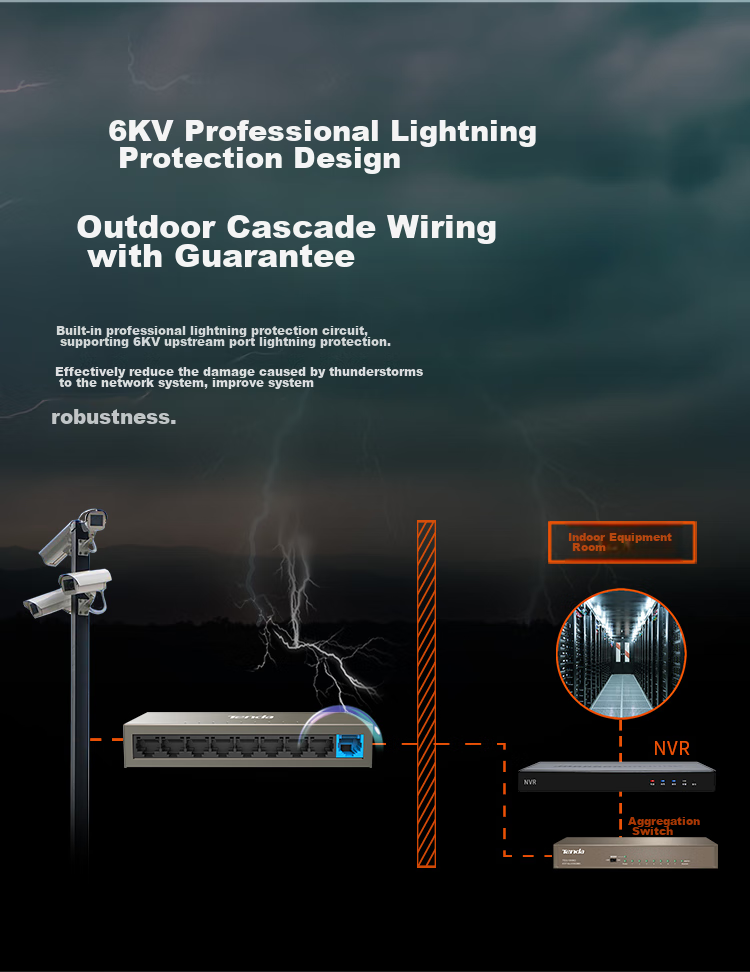

- Lightning Protection: 6KV on Uplink Port

- Dimensions: 140*66.5*25.3mm

- LED Indicators: 1 x Power, 9 x Link/Status

- Backplane Bandwidth: 1.8Gbps

- MAC Address Table: 2K

- Power Consumption: Up to 5W

Software:

- Forwarding Mode: Store-and-Forward

- Protocols: CDMA/CD, MAC Address Auto-Learning

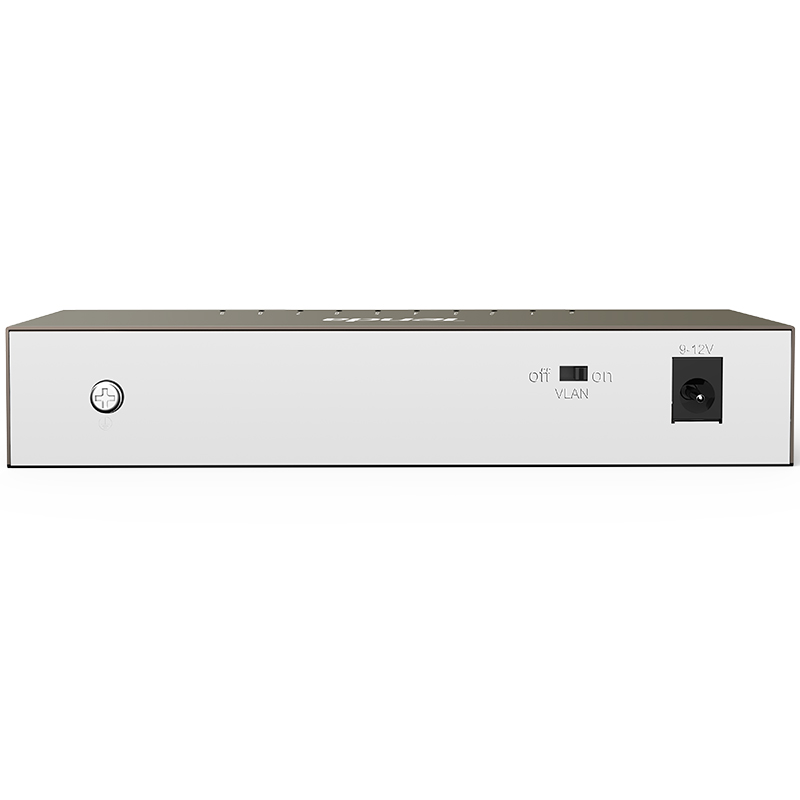

- Advanced Features: One-Key VLAN Mode, Isolation for Ports 1-8, Uplink on Port 9

Other Features:

- Operating Temperature: 0°C~40°C, Storage Temperature: -40°C~70°C

- Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

- Certifications: CCC, CE, FCC, RoHS

- Supported OS: Windows XP 32/64 bit, Linux, MAC OS

Package Contents:

1 x 9-Port Fast Ethernet Switch

1 x Power Cord

1 x Quick Installation Guide

Ideal for clear surveillance in various settings such as retail stores, small to medium-sized restaurants, budget hotels, factory dormitories, and parking fee collection areas.
