**Product Specifications:**
**Brand:** Thermalright
**Models:** PROMEW, FROZENWARFRAMEPRO, 360ARGBMEW
**Date:** 2024/04/24, Saturday, 17:32
**Temperature:** 35°C
**CPU Temperature:** 399
**GPU Temperature:** 34°C
**PROMEW, FROZENWARFRAMEPRO, 360ARGBMEW Features:**

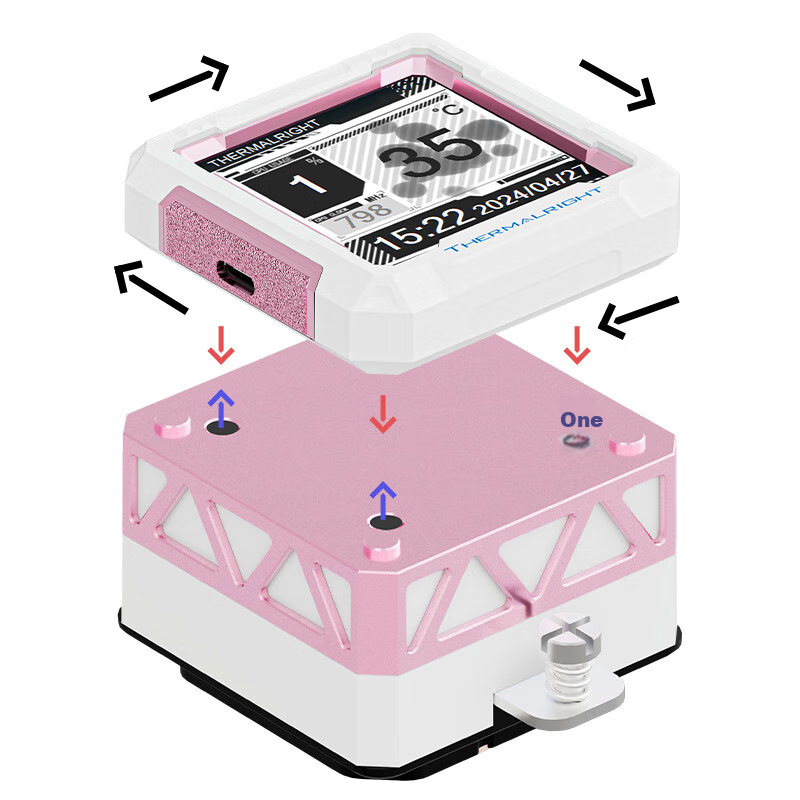

Modular magnetic detachable LCD display

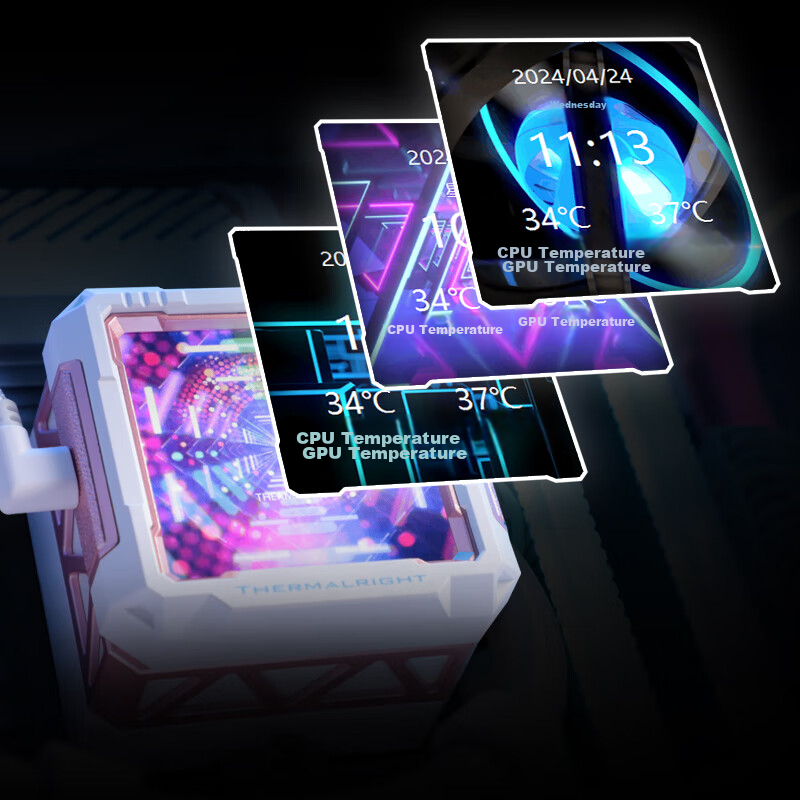

Supports DIY static and dynamic custom image switching
Supports system screen display (software dependent)
TL-P12W-S balanced fan with optimized noise reduction blade design ≤29.8DB(A)
Durable magnetic auxiliary S-FDB bearing
COREV1.0 independent water pump frame
Seamless switch between air and liquid cooling
Upgraded all-metal easy-to-install SS2 pressure fastening system
AMD compatible
Comprehensive leak-proof policy
**PROMEW, FROZENWARFRAMEPRO, 360ARGBMEW Display:**
320*320 resolution IPS LCD square screen
IPS panel for accurate color reproduction and stable viewing angles
Supports personalized image and GIF display
Peak brightness of 450NITS, 24-bit true color
**Additional Features:**
Modular design with detachable magnetic modules
Customizable system parameter display
Dynamic background theme support
Multiple display and sharing options
**Water Cooling System:**
COREV1.0 independent water pump frame
9-pole rotor motor with new fluid impeller design
TL-P12W-S pressure fan with optimized noise reduction blade design
Fan speed: 2000RPM±10%
Fan noise: ≤29.8dB(A)
Fan airflow: 70.84CFM
Fan pressure: 2.63 mm/H20
UL CLASS A insulation grade
STABLY-FDB magnetic stabilizing bearing
PWM and ARGB fan power interfaces
**Compatibility:**
LGA: 2011, 2066, 20XX
AMD: AM5, AM4
**Package Includes:**
Mounting screws and brackets for Intel and AMD platforms
TF7 thermal grease with a thermal conductivity of 12.8W/MK
**Warranty:** Five years
**PROMEW, FROZENWARFRAMEPRO, 360ARGBMEW Water Cooling Radiator:**
Compatible with Intel and AMD platforms
Radiator size: 397mm*120mm*27mm
Pump head size: 69mm*69mm*60mm
Pump head interface: 4PIN PWM
**Fan Specifications (TL-P12W-S):**
Fan size: L120mm*W120mm*H25mm
Fan speed: 2000RPM+10% (MAX)
Fan pressure: 2.63MMH2O (MAX)
Fan airflow: 70.84 CFM (MAX)
Operating noise: <29.8 DB(A)
Fan interface: 4PIN PWM
Fan bearing: S-FDB BEARING
Lighting interface: +5V 3PIN ARGB
*Note: The above information is based on data from THERMALRIGHT laboratories and is for reference only.*
