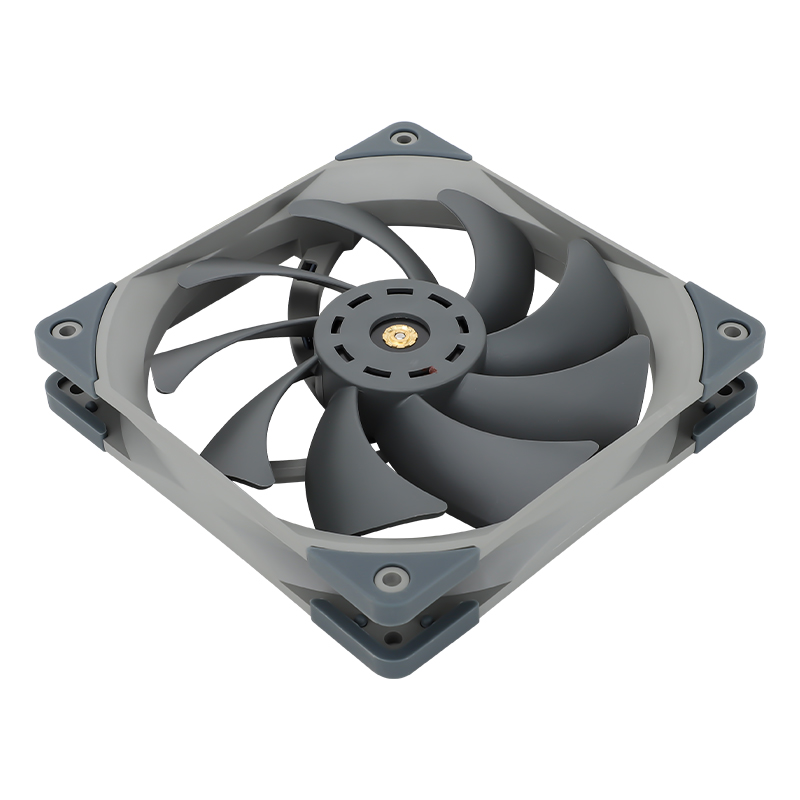

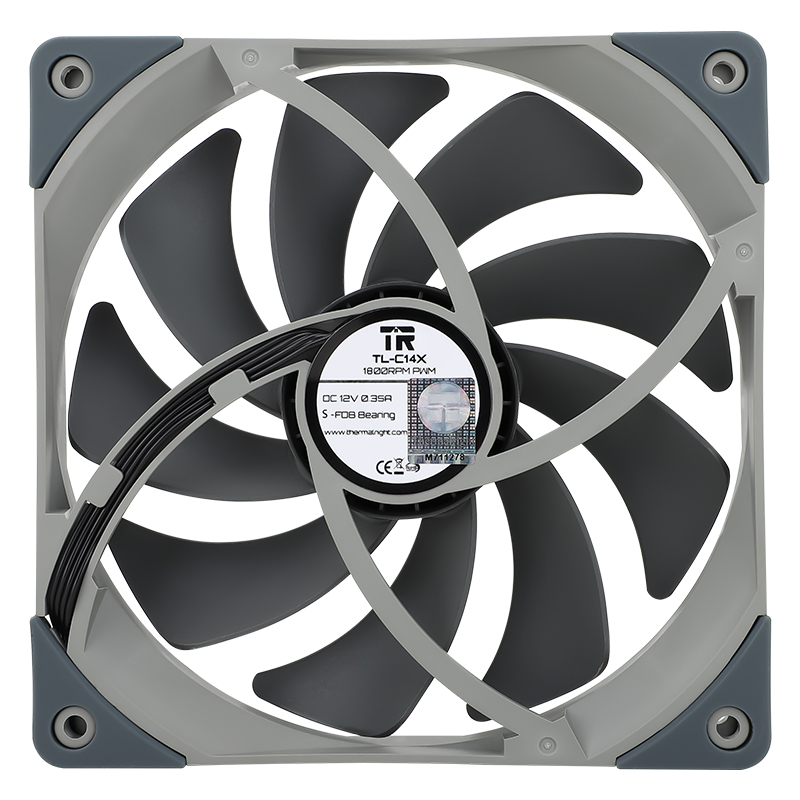

Thermalright TL-C14X 140mm Servo Fan, 1800 RPM PWM, Double-Sided Glue Dynamic Balance, S-FDB V2 Bearing, All-Metal Shaft Frame

SKU : 100009682517

Availability : In stock
4.7
Weight : 0.28 kg
Length : 21.5 cm
Height : 2.7 cm

GHS 155.90

GHS 168.38

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** Thermalright

**Model:** TL-C14X

**Fan Size:** 140mm

**Fan Type:** Servo-grade fan

**Number of Fan Blades:** 9

**Airflow:** 92.5CFM

**Fan Speed:** 1800 RPM

**Balancing:** Secondary adhesive dynamic balance

**Bearing Type:** S-FDBV2

**Frame:** Full metal frame

**Warranty:** 6 years

**Description:**

- The Thermalright TL-C14X is optimized for servo-grade applications, providing a stable and efficient user experience in complex scenarios. The 9-blade design with 92.5CFM airflow output has been meticulously tested within 1800 RPM for optimal performance.

- The fan features secondary adhesive dynamic balance with dark red balance compensation adhesive on the front or back of the blades. It is important not to remove this adhesive to prevent imbalance.

- The fan frame is constructed with a full metal shaft sleeve design, embodying high-quality fan design principles.

**Performance:**

- **Efficiency:** Thermalright prioritizes efficiency with a fan speed of 1800 RPM, airflow of 92.5CFM, air pressure of 2.23mmH20, and noise level of 30.2 dBA. Data accuracy verified by Lemin Laboratory; actual performance may vary based on environmental conditions.

- The fan provides a consistent and outstanding user experience, with included accessories such as silicone corner pads, steel foot nails, and flame-retardant braided cable.

**Additional Features:**

- **Silicone Corner Pads:** Soft silicone material for effective shock absorption.

- **Steel Foot Nails:** Additional accessories for versatile installation scenarios.

- **Braided Cable:** Flame-retardant braided cable for added safety.

- **S-FDBV2.0 Bearing:** High-precision magnetic fluid dynamic bearing to eliminate fan blade vibration during operation.

**Technical Specifications:**

- **Dimensions:** L140mm x W140mm x H26mm

- **Fan Speed:** 1800 RPM ±10% (MAX)

- **Noise Level:** ≤30.2 dBA

- **Airflow:** 92.5CFM (MAX)

- **Air Pressure:** 2.23mm H20 (MAX)

- **Connector:** 4PIN PWM

- **Operating Voltage:** 12V DC

- **Rated Current:** 0.35A

- **Bearing Type:** S-FDB BearingV2

- Specifications provided by Thermalright Laboratory, for reference purposes only.
